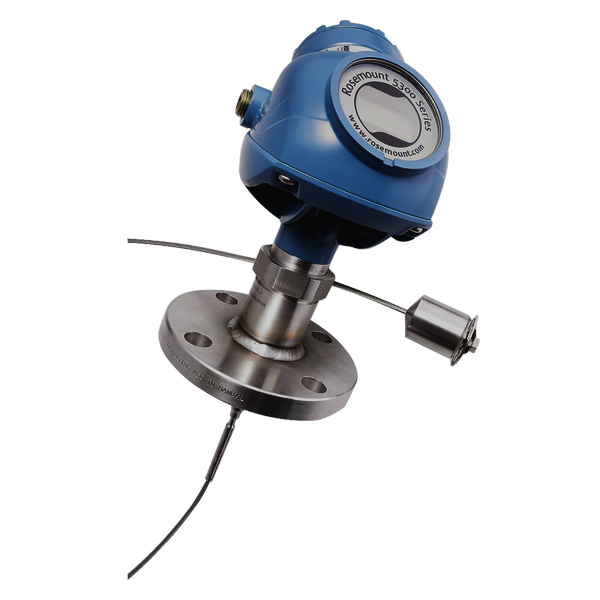

Rosemount 5300 Level Transmitter

Product Number: 5301HA2P1N3AM00160CDI1Q4Ordering InformationModel: 5301 - Guided Wave Radar Liquid Level or Interface TransmitterSignal output: H - 4-20 mA with HART communication (default output from factory is HART 5, add option code HR7 for HART 7)Housing material: A - Polyurethane-covered AluminiumConduit/cable threads: 2 - M20 x 1.5 adapterOperating temperature and pressure¹: P²High Pressure:3320 psi @ 482 °F and 5000 psi @ 100 °F(228.9 bar @ 250 °C and 345 bar @ 38 °C)Probe type: 3A, 3B, 4A, 4S, 5A, and 5BMaterial of construction³: 1Process connection/probe: 316/316L/EN 1.4404Probe type: AllValid operation temperature and pressure: S, H, P, CSealing, O-ring material: N4 - NoneProbe type: 3A5 - Coxial (for level measurement)Process connections: Flange / 1-in.6, 1 1/2-in., 2-in.6 ThreadProbe lengths: Min: 1 ft. 4 in. (0.4 m); Max: 19 ft. 8 in. (6 m)Probe length units: M - Metric (meters, centimeters)Total probe length (feet/m)7: 001 - 1 ft.Total probe length (in.cm)7: - 60 in.Process connection - size/type: CD ASME flanges: 4-in. Class 600, RF (Raised Face Type)Material of construction: 1, H, DOperating: H, P, CHazardous locations certifications: I1 - ATEX Intrinsic SafetySpecial certifications: Q4 - Calibration Data CertificationProcess seal rating. Final rating depends on flange and O-ring selection.Requires option None for sealing (no O-ring).
