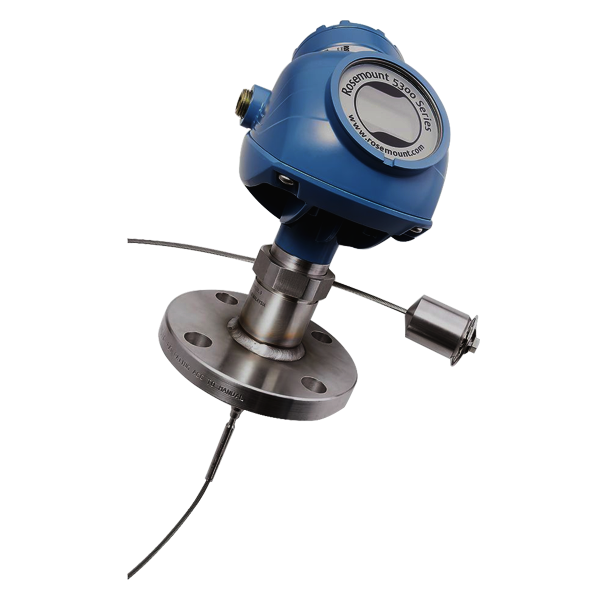

Ordering Information Model 5301 Guided Wave Radar Liquid Level or Interface Transmitter (interface available for fully submerged probe) Signal output H 4-20 mA with HART communication (default output from factory is HART 5, add option code HR7 for HART 7) Housing material A Polyurethane-covered Aluminum (Aluminum alloy A360, maximum 0.6 percent Cu) Conduit / cable threads 1 ½ - 14 NPT, 1 plug included Operating temperature and pressure H(1)(2) Design and operating temperature:-76 to 752 °F (-60 to 400 °C)-15 to 5000 psig (-1 to 345 bar) Material of construction: Process connection / probe 1 316/316L/EN 1.4404 Sealing O-ring material N(3) None Probe type 4A Description: Rigid Single Lead (8 mm) Process connections: Flange / 1- in.(4), 1½-in., 2- in.(4) Thread / Tri Clamp Probe lengths: Min: 1 ft. 4 in. (0.4 m), Max: 9 ft. 10 in. (3 m) Probe length units M Metric (meters, centimeters) Total probe length (feet/m) 001 Total probe length (inch/cm) 58 Process connection - size / type CB 4-in. Class 300, RF (Raised Face Type) Hazardous locations certifications NA No Hazardous Locations Certifications Display M1 Integral digital display Hydrostatic testing P1 Hydrostatic testing, including certificate Factory configuration C1 Factory configuration per Configuration Data Sheet Special quality assurance Q4 Calibration data certificate Material traceability certification Q8 Material traceability certification consistent with ISO10474-3.1:2013 / EN10204-3.1:2004 Centering discs S3(5) Description: 3-in. Centering discOuter diameter: 2.7 in. (68 mm) SW2 J0 Requires option None for sealing (no O-ring).For applications where a large amount of contamination is present a standard or high pressure seal should be used, if process conditions allow.Requires Operating Temperature and Pressure code H, P, or C.Only available with Operating Temperature and Pressure code S.Available for SST, Alloy C-276, Alloy 400, Alloy 825, and Duplex 2205 probes, type 2A, 4A, 4B, 4S, and 5A. Same disc material as probe material.
