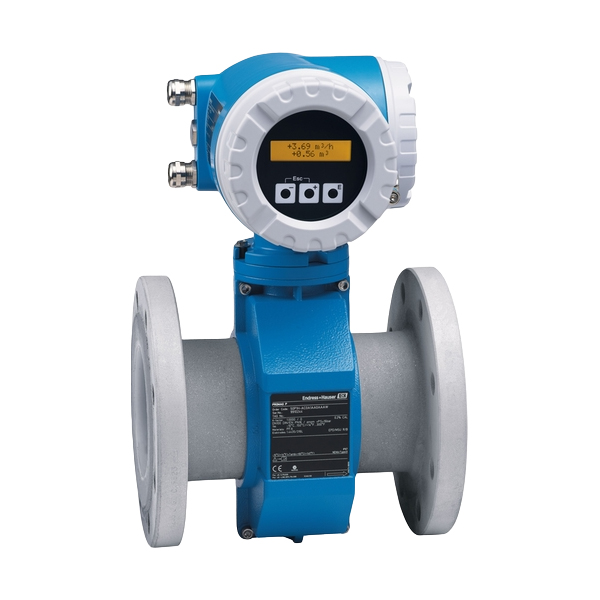

Features & Specifications Measuring principle Electromagnetic Product headline The flowmeter for highest medium temperatures with a modular electronic concept.Dedicated to chemical and process applications with corrosive liquids and high medium temperatures. Sensor features Diverse applications – wide variety of wetted materials. Energy-saving flow measurement – no pressure loss due to cross section constriction. Maintenance-free – no moving parts.Nominal diameter: max. DN 600 (24"). All common Ex approvals. Liner made of PTFE or PFA. Transmitter features Quality – designed for custody transfer; featuring worldwide recognized metrological approvals. Safe operation – display provides easily readable process information. Fully industry-compliant – IEC/EN/NAMUR.2-line backlit display with push buttons. Device as compact or remote version. HART, PROFIBUS PA/DP. Nominal diameter range DN15...6001/2"...24" Max. measurement error ±0.5%±0.2% (optional) Measuring range 0...9'600 m3/h Max. process pressure PN10...40Cl 150...300JIS 10...20KAS 2129 Table EAS 4087 PN16 Medium temperature range -40...+180°C(-40...+356°F) Ambient temperature range -20...+60°C-40...+60°C (optional) Degree of protection IP 67 (NEMA 4x)IP 68 (Nema 6P) Display/Operation Two line display with backlitPush button Outputs 4...20 mAPulse/FrequencyStatus Inputs Status Digital communication HARTPROFIBUS PA Hazardous area approvals ATEX, IECEx, NEPSI, FM, CSA Product safety CE, C-tick, EAC marking Pressure approvals and certificates PED, CRN
