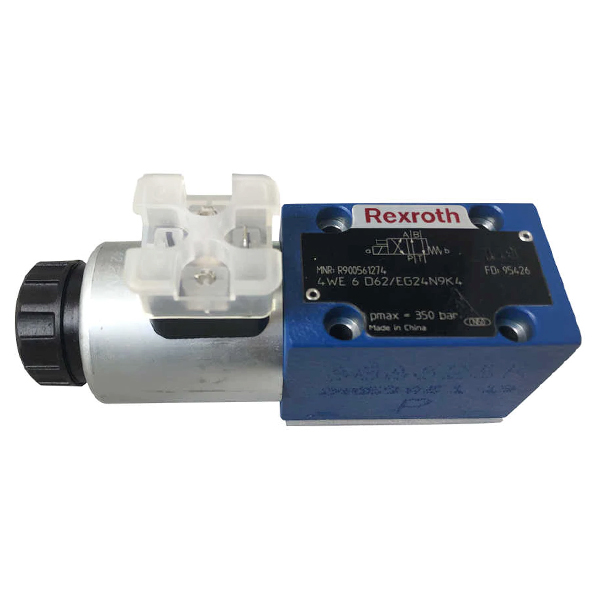

WE6 Directional Spool ValveBrand: RexrothDirectional valves type WE are solenoid operated directional spool valves. They control the start, stop, and direction of a flow. These directional valves basically consist of housing; one or two solenoids; control spool; and no, one, or two return springs. A full array of spools are possible with variations in voltage and electrical connection, all within the program. Flow and pressure rates from 4000 PSI to 5000 PSI and 21 GPM to 32 GPM cover a wide ran
Part Number
4WE6HA6X/EG24N9K4
Shipping Weight
2 Kg
Артикул
4WE6HA6X/EG24N9K4
Срок поставки
1 Weeks
Описание
Part Number: 4WE6HA6X/EG24N9K4Model: WE6 Directional Spool ValveBrand: RexrothDirectional valves type WE are solenoid operated directional spool valves. They control the start, stop, and direction of a flow. These directional valves basically consist of housing; one or two solenoids; control spool; and no, one, or two return springs. A full array of spools are possible with variations in voltage and electrical connection, all within the program. Flow and pressure rates from 4000 PSI to 5000 PSI and 21 GPM to 32 GPM cover a wide range of applications.Features:Size 6For subplate mounting:Porting pattern according to ISO 4401-3, NFPA T3.5.1M R1, and ANSI B93.7 D 03Wet-pin AC or DC solenoidsSolenoids with detachable coilElectrical connection as individual or central connectionOptional spool position monitoring (RE 24830)Smooth switching characteristicsCSA certified part numbers in all sizes
