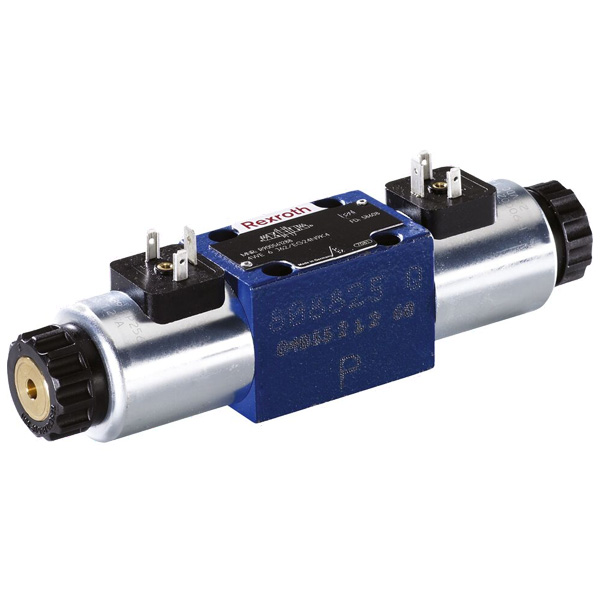

4WE6D6X/EG24N9K4/B10 | Rexroth Type WE Directional Spool Valve

Features:4/3-, 4/2- or 3/2-way versionPorting pattern according to ISO 4401-03-02-0-05 (with or without locating hole) and NFPA T3.5.1 R2-2002 D03High-power solenoid, optionally rotatable by 90°Electrical connection as individual or central connectionManual override, optionalSpool position monitoring, optionalCE conformity according to the Low-Voltage Directive 2014/35/EU for electrical voltages > 50 VAC or > 75 VDCSolenoid coil as approved component with UR marking according to UL 906, edition 1982, optionalApproval according to CSA C22.2 No. 139-1982, optionalSize 6Component series 6XMaximum operating pressure 350 bar [5076 psi]Maximum flow:80 l/min [21 US gpm] – DC60 l/min [15.8 US gpm] – AC Ordering Code 4 4 main ports WE Directional valve 6 Size 6 D Symbols 6X Component series 60 … 69 (60 … 69: unchanged installation and connection dimensions) E High-power wet-pin solenoid with detachable coil Electrical voltages G24 Manual override(1) N9 With concealed manual override (standard) Electrical connection K4 Individual connection or central connection Throttle insert B10 Operation of the manual override only possible up to 50 bar [725 psi] tank pressure. Avoid damage to the bore of the manual override. (Special tool for the operation, separate order, material no. R900024943). If the manual override is blocked, operation of the opposite solenoid is to be excluded. The manual override cannot be allocated a safety function.
