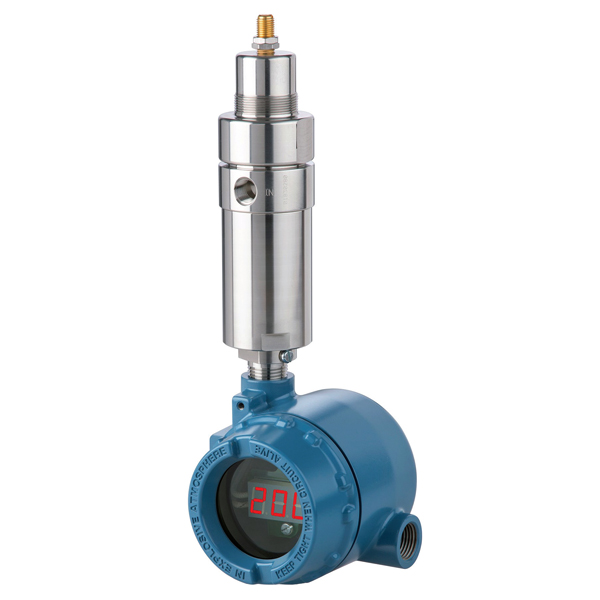

44-6861-241S-002 | TESCOM™ 44-6800 Series Vaporizing Regulator

Features:For worldwide use, Designed for 100/240 VAC, 50/60 HzCSA, ATEX and IECEX Certification to T3 (200°C) for flammable gases, vapors or liquids atmospheres and combustible dust atmospheresCertified separability enables user to decouple the regulator body and the electronic enclosure while retaining product certifications4-20 mA analog output for remote temperature monitoring and data acquisitionOptional LED temperature displayOptional panel mountingAdvanced heat transfer technologyHeater with PID controller in all product configurationsSingle turn heater temperature control dialNACE MR0175/ISO 15156 44-6800 Series Regulator Part Number Selector Model 44-68 44-6800 Series Regulator Material 6 [Body] 316 Stainless Steel[Diaphragm] Elgiloy®[Spring] Elgiloy®[Remaining Parts] 316 Stainless Steel Outlet Pressure Range 1 0-50 psig0-3.4 bar0-345 kPa Inlet and Outlet Port Type -2 NPTF Inlet and Outlet Port Size 4 1/4" Inlet Pressure 1 6000 psig414 bar41,370 kPa Steam S
