Промышленное оборудование · Siemens

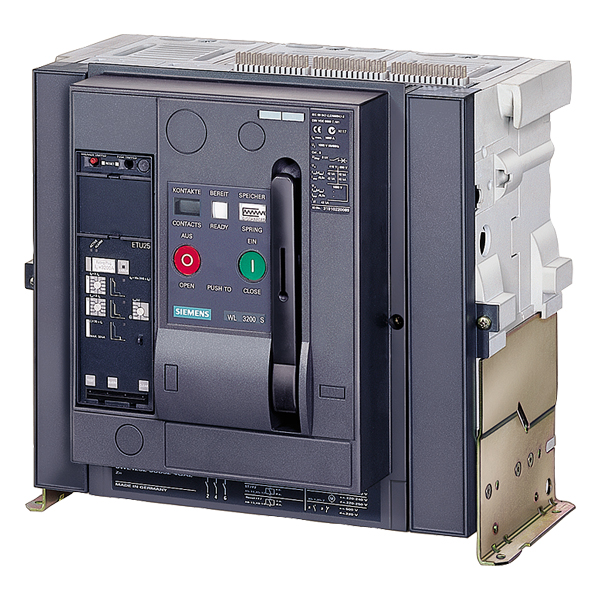

3WL1232-3DG36-4GP4-Z K07 | Siemens Circuit Breaker

Артикул: QT-63255
от 6 322 995 ₸
В наличии: 0

Предложения складов

СкладЦенаВ тенгеОстатокДоставка

Характеристики

ConditionNew & Original in Factory Packing
Estimated Lead Time8 Weeks
Factory Warranty12 Months
ID каталога70165
ManufacturerSiemens
ModelCircuit Breaker
Part Number3WL1232-3DG36-4GP4-Z K07
Shipping Weight125 Kg
Артикул3WL1232-3DG36-4GP4-Z K07

Описание

Withdrawable circuit breaker with guide frame 3-pole, size II, IEC In=3200A to 690V, AC50/60Hz Icu=80kA at 500V rear connection horizontal Overcurrent release ETU 27 LSING protection adjustable 0.4-1 in Ground fault/N protection integrated Motorized/manual operating mechanism with spring charging motor AC 50/60 Hz 208-240 V or 220-250 VDC Activation AC 50/60 Hz 230 V, 220 V DC With 1st auxiliary release Shunt release "F", F1 50/60 Hz 230 V AC/220 V DC, 100% on-load factor With 2nd auxiliary release "R", F3 Undervoltage, instant. 50/60 Hz 380-415 V AC 4NO+4NC K07= Tripped signaling contact, 1 CO not possible with option F02
