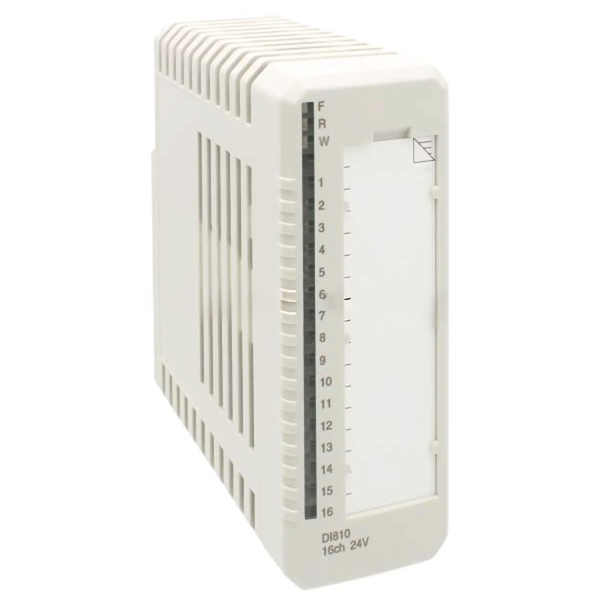

3BSE008508R1 | ABB Digital Input DI810

Model Number: DI810Type: Digital Inout ModuleProduct ID: 3BSE008508R1 Model: Digital Input DI810Manufacturer: ABBCondition: New & Original in Factory PackingFactory Warranty: 12 MonthsThis module has 16 digital inputs. The input voltage range is 18 to 30 volt d.c. and the input current is 6 mA at 24 V. The inputs are divided into two individually isolated groups with eight channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read via the ModuleBus.
