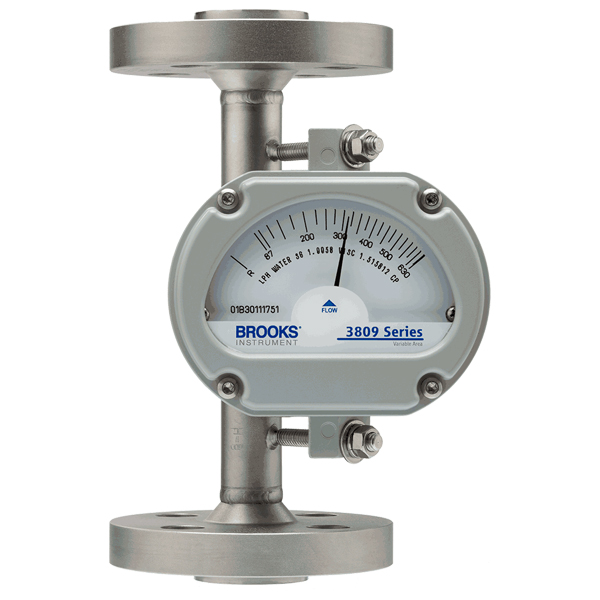

3809GBB08AFBF3D2B0AB | Brooks Instrument 3809G Series Metal Tube Variable Area Flow Meter

Ordering Information Base Model 3809 ORIENTATIONInlet: VerticalOutlet: VerticalStd Accuracy: 2% F.S. or 2.5 VDI Model Revision G Redesigned ... Material & Material Certification B 316L SS Dual Cert w/Material Certificate 3.1 Construction B Flange RF with Oversized Connection Meter & Connection Size 08 Meter Size: 8Std Conn Sz: 1/2"Oversized Conn: 3/4"Connection 2x Std Size: 1"Connection 3x Std Size: 1.5"Connection 4x Std Size: 2"Lined Meter: 1/2"Threaded Female NPT - High Pressure: 1/2"Threaded Male NPT: 1"Threaded Female - Standard Pressure: 3/4" Maximum Flow (Based on Water at Standard Conditions for 316SS Meter) A Size 7: 25 l/hSize 8: 250 l/hSize 10: 1200 l/hSize 12: 4000 l/hSize 13: 6500 l/hSize 15: 20.000 l/hSize 16: 49.000 l/h Connection Type F ANSI 150LBS RF Scale Inscription/Fluid B Scale: Single - % Scale/DirectFluid: Gas Meter Accuracy F 1.6 VDI Indicator Configuration 3 X-proof SS Housing Electronics Configuration D Transmitter. 4 - 20 mA / HART compatible Electrical Connection 2 M20 x 1.5 Certs (Approval Type) B Zone 1, Intrinsically Safe Valve/Flow Controller 0 None Process with Certificates (Group 1) A Positive Material Identification (PMI) - 3.1 (w/o Carbon) Process with Certificates (Group 2) B Liquid Dye-Penetrant Test Report 3.1
