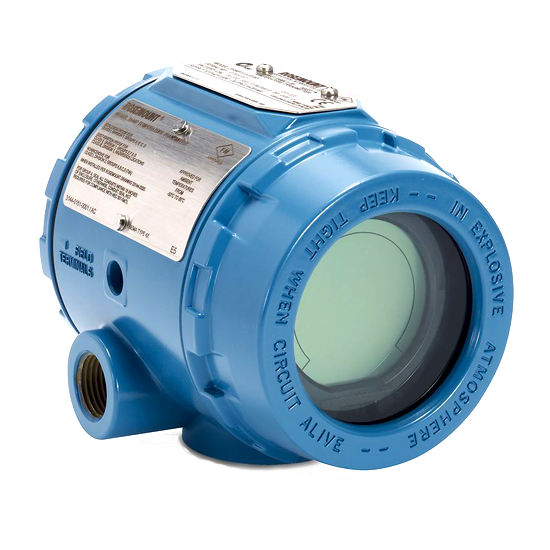

3144PD6A1K7B5M5CNQ4QT | Rosemount 3144P Temperature Transmitter

SpecificationsInput: Dual and single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)Output Signal: 4-20 mA /HART® protocol, FOUNDATION™ Fieldbus protocolHousing: Dual-compartment field mountDisplay/Interface: Large LCD display with percent range graph and buttons/switchesDiagnostics: Basic diagnostics, Hot Backup™ capability, sensor drift alert, thermocouple degradation, min/max trackingCalibration Options: Transmitter-sensor matching (Callendar-Van Dusen constants), custom trimCertifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, hazardous location, marine type, see full specs for complete list of certificationsFeaturesIndustry-leading accuracy and reliability for best performance in critical control and safety applications.Transmitter-sensor matching improves measurement accuracy up to 75%.5-year long-term stability extends calibration intervals to reduce trips to the field.Rosemount X-well Technology measures temperature without a process penetration for reduced design, installation and maintenance costs. Ordering Information Model 3144P Temperature transmitter Housing style D6 Field mount housing, dual-compartment housing Material: Stainless steelConduit entry size: M20 1,5 (CM20) Transmitter output A 4—20 mA with digital signal based on HART Protocol Measurement configuration 1 Single-sensor input Product Certificates K7(1)(2) IECEx Intrinsic Safety, Flameproof, Dust Ignition-Proof and Type n combination Mounting bracket B5 “L” mounting bracket for 2-in. pipe or panel mounting - All SST Display M5 LCD display Alarm level configuration CN NAMUR alarm and saturation levels, low alarm Calibration certification Q4 Calibration certificate (3-point calibration) Quality certification for safety QT Safety-certified to IEC 61508 with certificate of FMEDA data (HART only) When IS approval is ordered on a FOUNDATION Fieldbus, both standard IS and FISCO IS approvals apply. The device label is marked appropriately.Consult factory for availability when ordering with HART or FOUNDATION Fieldbus models.
