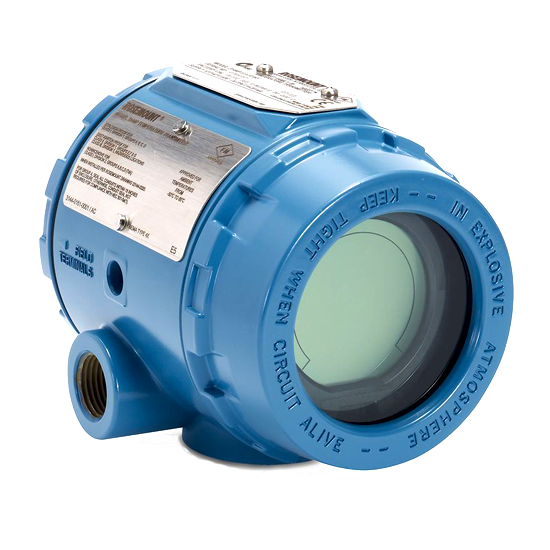

Rosemount 3144P Temperature Transmitter

Part Number: 3144PD1A1C2B4M5Model: 3144P Temperature TransmitterManufacturer: RosemountSpecificationsInput: Dual and single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)Output Signal: 4-20 mA /HART® protocol, FOUNDATION™ Fieldbus protocolHousing: Dual-compartment field mountDisplay/Interface: Large LCD display with percent range graph and buttons/switchesDiagnostics: Basic diagnostics, Hot Backup™ capability, sensor drift alert, thermocouple degradation, min/max trackingCalibration Options: Transmitter-sensor matching (Callendar-Van Dusen constants), custom trimCertifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, hazardous location, marine type, see full specs for complete list of certificationsFeaturesIndustry-leading accuracy and reliability for best performance in critical control and safety applications.Transmitter-sensor matching improves measurement accuracy up to 75%.5-year long-term stability extends calibration intervals to reduce trips to the field.Rosemount X-well Technology measures temperature without a process penetration for reduced design, installation and maintenance costs.
