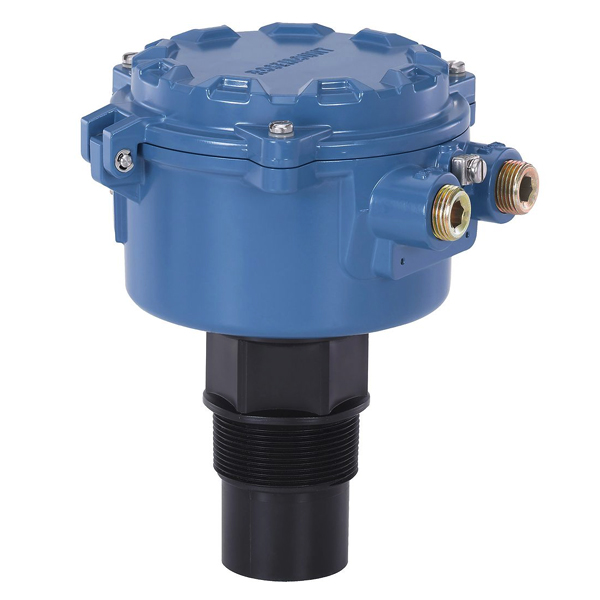

Rosemount*This product has been discontinued.Ordering InformationModel: 3102 - Ultrasonic Level Transmitter with 2 integral relays, 1 to 36 ft. (0,3 to 11 m) rangeSignal Output: H - 4-20 mA with HART communicationHousing Material: A - Polyurethane-covered AluminumConduit/Cable Thread: A - 1/2 - 14 NPTWetted Material: F - PVDFProcess Connection: RC¹ - 2-in. NPT threadProduct Certificates: G5 - FM Ordinary LocationTag Plates: ST² - Stainless Steel engraved tag plateChoosing this option implies US
Model
3102 Level Transmitter
Part Number
3102HA1FRCG5ST
Shipping Weight
8 Kg
Артикул
3102HA1FRCG5ST
Описание
Part Number: 3102HA1FRCG5STModel: 3102 Level TransmitterManufacturer: Rosemount*This product has been discontinued.Ordering InformationModel: 3102 - Ultrasonic Level Transmitter with 2 integral relays, 1 to 36 ft. (0,3 to 11 m) rangeSignal Output: H - 4-20 mA with HART communicationHousing Material: A - Polyurethane-covered AluminumConduit/Cable Thread: A - 1/2 - 14 NPTWetted Material: F - PVDFProcess Connection: RC¹ - 2-in. NPT threadProduct Certificates: G5 - FM Ordinary LocationTag Plates: ST² - Stainless Steel engraved tag plateChoosing this option implies US (Imperial) units of measurement of feet are required for the default configuration. Configuration can be changed on-site.The maximum number of characters that can be engraved is 16.
