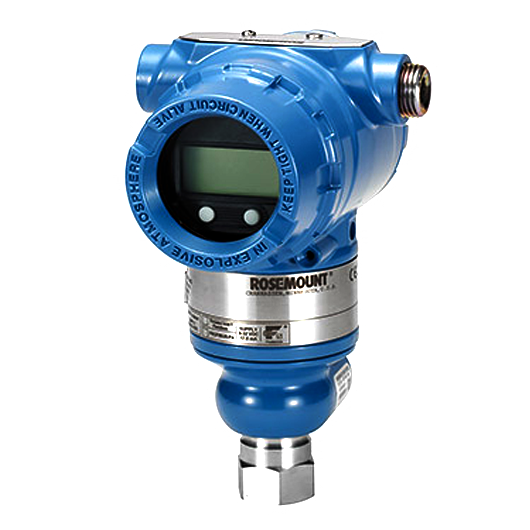

Ordering InformationModel3051T(1)In-Line Pressure TransmitterPressure typeGGagePressure range5(2)-14.7 to 10000 psi (-1,01 to 689,47 bar)Transmitter outputA(3)4–20 mA with Digital Signal Based on HART ProtocolProcess connection style2B1 /2–14 NPT Female2(4)Isolating diaphragm: 316L SSTProcess connection wetted parts material: 316L SSTSensor fill fluid1SiliconeJHousing material: SSTConduit entry size: ½–14 NPT Mounting bracket(5)B4Bracket for 2-in. Pipe or Panel Mounting, All SST Product certifications E8 ATEX Flameproof and Dust Certification Display and interface optionsM5LCD Display Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.3051TG lower range limit varies with atmospheric pressure. Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Panel mounting bolts are not supplied.
