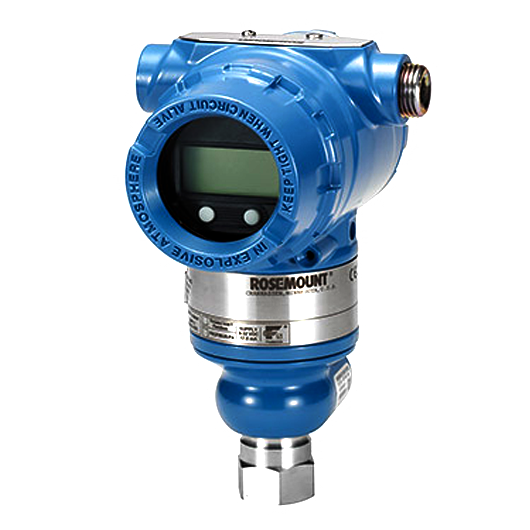

Ordering Information Model 3051T(1) In-Line Pressure Transmitter Pressure type G Gage Pressure range 4(2) -14.7 to 4000 psi (-1,01 to 275,79 bar) Transmitter output A(3) 4–20 mA with Digital Signal Based on HART Protocol Process connection style 2B 1/2–14 NPT Female Isolating diaphragm 2(4) 316L SST O-ring A Glass-filled PTFE Sensor fill fluid 1 Silicone J Housing material: SSTConduit entry size: ½–14 NPT Mounting bracket(5) B4 Bracket for 2-in. Pipe or Panel Mounting, All SST Product certifications E5 FM Explosion-proof, Dust Ignition-proof Display and interface options M5 LCD Display Calibration certification Q4 Calibration Certificate Material traceability certification Q8 Material Traceability Certification per EN 10204 3.1 Pressure testing P1 Hydrostatic Testing with Certificate Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.3051TG lower range limit varies with atmospheric pressure. Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.Panel mounting bolts are not supplied.
