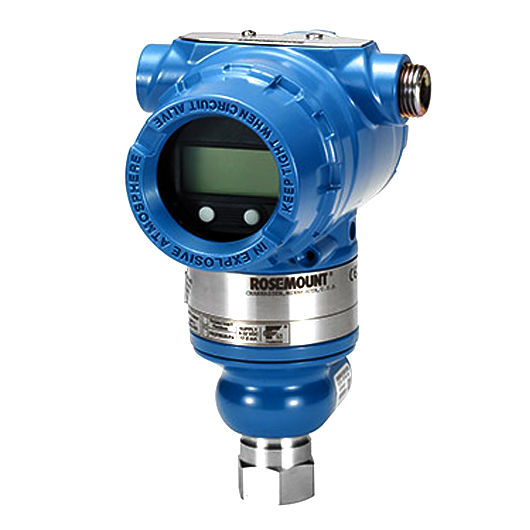

Ordering Information Model 3051T(1) In-Line Pressure Transmitter Pressure type G Gage Pressure range 4(2) -14.7 to 4000 psi (-1,01 to 275,79 bar) Transmitter output A(3) 4–20 mA with Digital Signal Based on HART Protocol Process connection style 2B 1/2–14 NPT Female 2(4) Isolating diaphragm: 316L SSTProcess connection wetted parts material: 316L SST Sensor fill fluid 1 Silicone A Housing material: AluminumConduit entry size: ½–14 NPT Mounting bracket(5) B4 Bracket for 2-in. Pipe or Panel Mounting, All SST Configuration buttons D4(6) Analog Zero and Span Display and interface options M5 LCD Display Software configurationC1(7) Custom Software Configuration (Completed CDS 00806-0100-4007 for wired and 00806-0100-4100 for wireless required with order) Calibration certification Q4 Calibration Certificate Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.3051TG lower range limit varies with atmospheric pressure. Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.Panel mounting bolts are not supplied.Only available with HART 4-20 mA output (output code A). Only available with HART 4-20 mA output (output code A) and Wireless output (output code X).
