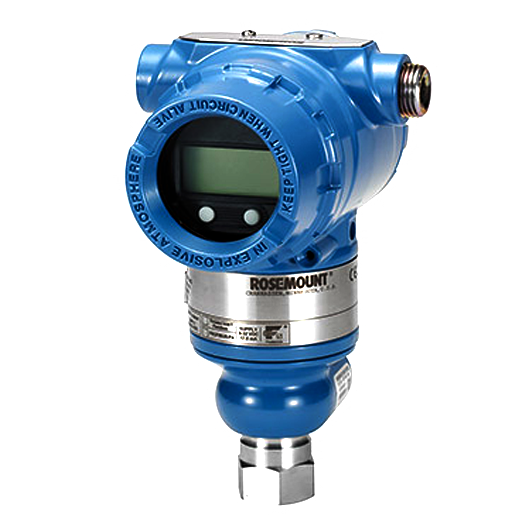

3051TG4A2B21AB4 | Rosemount 3051T In-Line Pressure Transmitter

Part Number: 3051TG4A2B21AB4Ordering InformationModel: 3051T¹ - In-Line Pressure TransmitterPressure type: G - GagePressure range: 4 - -14.7 to 4000 psi (-1,01 to 275,79 bar) [Gage (3051TG)²]; 0 to 4000 psia (0 to 275,79 bar) [Absolute (3051TA)]Transmitter output: A³ - 4?20 mA with Digital Signal Based on HART ProtocolProcess connection style: 2B - 1/2?14 NPT FemaleIsolating diaphragm: 24 - 316L SST; 316L SST [Process connection wetted parts material]Sensor fill fluid: 1 - SiliconeHousing material: A - Aluminum; ½?14 NPT (Conduit entry size)Mounting bracket5: B4 - Bracket for 2-in. Pipe or Panel Mounting, All SSTNOTE:Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.3051TG lower range limit varies with atmospheric pressure.Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.Panel mounting bolts are not supplied.
