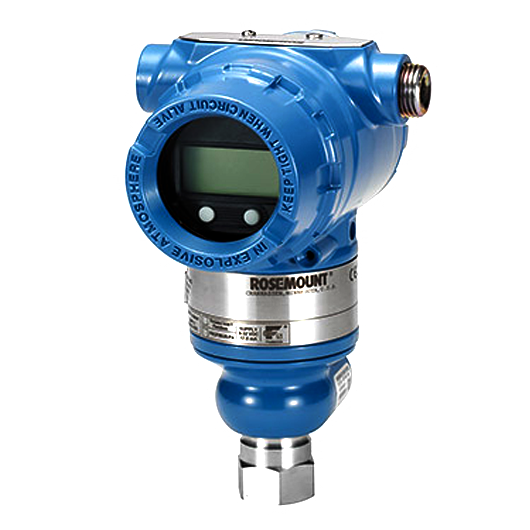

Ordering InformationModel3051T(1)In-Line Pressure TransmitterPressure typeGGagePressure range3(2)-14.7 to 800 psi (-1,01 to 55,15 bar)Transmitter outputA(3)4–20 mA with Digital Signal Based on HART ProtocolProcess connection style2B1 /2–14 NPT Female3(4)Isolating diaphragm: Alloy C-276Process connection wetted parts material: Alloy C-276Sensor fill fluid2(5)InertAHousing material: AluminumConduit entry size: ½–14 NPT Mounting bracket(6)B4Bracket for 2-in. Pipe or Panel Mounting, All SST Cleaning process area(7) P2 Cleaning for Special Service Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.3051TG lower range limit varies with atmospheric pressure. Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Not available with Wireless Output (output code X). Panel mounting bolts are not supplied.Not valid with Alternate Process Connection S5
