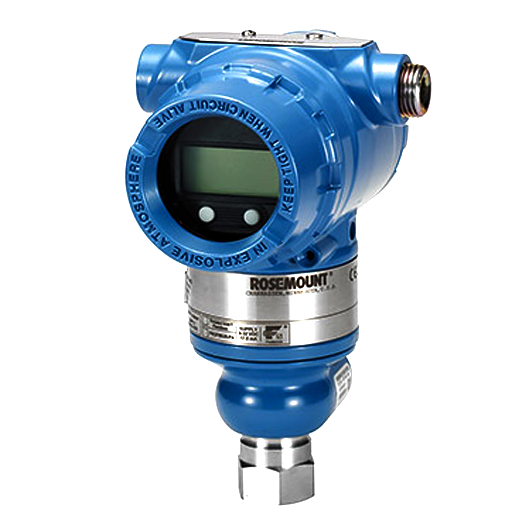

3051TG2A2B21BS5B4Q4D4M5DO+0306RT22AA11 | Rosemount 3051T In-Line Pressure Transmitter with Integral Manifold

Ordering InformationModel3051T(1)In-Line Pressure TransmitterPressure typeGGagePressure range2(2)-14.7 to 150 psi (-1,01 to 10,34 bar)Transmitter outputA(3)4–20 mA with Digital Signal Based on HART ProtocolProcess connection style2B1 /2–14 NPT Female2(4)Isolating diaphragm: 316L SSTProcess connection wetted parts material: 316L SSTSensor fill fluid1SiliconeBHousing material: AluminumConduit entry size: M20 × 1.5 Integral assembly S5Assemble to Rosemount 306 Integral Manifold Mounting bracket B4 Bracket for 2-in. pipe or panel mounting, all stainless steel Calibration certification Q4Calibration certificate Configuration buttons D4(5) Analog zero and span Display and interface options M5LCD display Conduit plug DO 316 SST conduit plug Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.3051TG lower range limit varies with atmospheric pressure. Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.Only available with HART 4–20 mA output (code A). Ordering Information Manifold Model 0306 In-line manifold Manufacturer R Rosemount Manifold style T Threaded Manifold type 2 Two-valve Material of construction 2 Body: 316/316L SSTBonnet: 316 SST Stem and tip/ball: 316 SST Process connection AA ½–14 male NPT process connection for in-line transmitter Packing material 1(1) PTFE Valve seat 1 Integral Includes PTFE tape on drain/vent valves and plugs.
