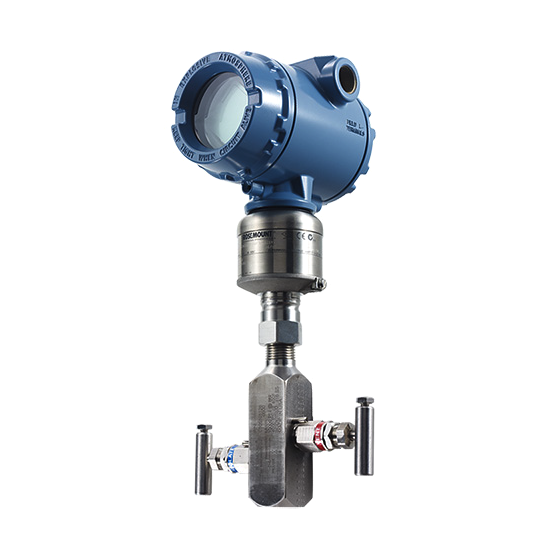

3051SMV5M12G4R2A11A1KC13E1M5Q4Q8 | Rosemount 3051S Scalable Pressure Transmitter

Part Number: 3051SMV5M12G4R2A11A1KC13E1M5Q4Q8Integral Manifold Model: 0305RC32B11B4Model: 3051S Scalable Pressure TransmitterManufacturer: RosemountSpecificationsRangedown: Up to 200:1Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION fieldbusMeasurement Range: Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) AbsoluteProcess Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SSTDiagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse LineCertifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications3051S Scalable Pressure TransmitterFeaturesPatented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solutionBest-in-class, scalable architecture enhances performance, functionality and process connectionsTransmitter arrives fully assembled and leak tested for simple installation and maintenanceAll-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracyUltra and Ultra for Flow performance classes deliver 15-year stability and 15-year limited warranty200:1 rangedown produce reliable measurements and wide application flexibilityIntegrates seamlessly with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibilitySIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installationsAdvanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditionsRemote display and interface offers easy access to process and device information
