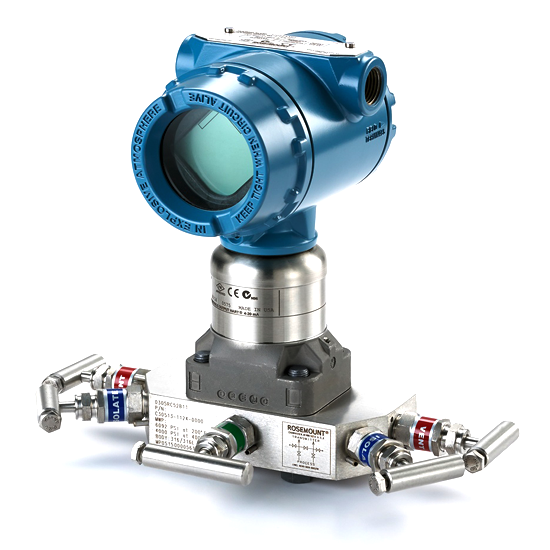

Part Number: 3051S3CD2A2A11A1JC1D4I7M5P1Q4Q8 Model: 3051S Scalable Pressure TransmitterManufacturer: RosemountSpecificationsRangedown: Up to 200:1Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION fieldbusMeasurement Range: Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) AbsoluteProcess Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SSTDiagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse LineCertifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications3051S Scalable Pressure TransmitterFeaturesPatented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solutionBest-in-class, scalable architecture enhances performance, functionality and process connectionsTransmitter arrives fully assembled and leak tested for simple installation and maintenanceAll-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracyUltra and Ultra for Flow performance classes deliver 15-year stability and 15-year limited warranty200:1 rangedown produce reliable measurements and wide application flexibilityIntegrates seamlessly with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibilitySIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installationsAdvanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditionsRemote display and interface offers easy access to process and device informationOrdering InformationTransmitter type: 3051S - Scalable pressure transmitterPerformance class¹: 3² - Ultra for Flow: 0.04% reading accuracy, 200:1 turndown, 15-yr stability, 15-yr limited warrantyConnection type: C - CoplanarMeasurement type³: D - DiffentialPressure range: 2A - -250 to 250 inH20 (-621,60 to 621,60 mbar)Isolating diaphragm: 24 - 316L SSTProcess connection: A115 - Assemble to Rosemount 305 integral manifoldTransmitter output: A - 4-20 mA with digital signal based on HART protocolHousing style: 1J - PlantWeb housingSoftware configuration: C16 - Custom software configuration (requires Configuration Data Sheet)Ground screw7: D4 - External ground screw assemblyProduct certification8: I7 - lECEx Instrinsic SafetyDisplay type9: M5 - PlantWeb LCD displayPressure testing10: P1 - Hydrostatic testing with certificateCalibration certification: Q4 - Calibration certificateMaterial traceability certification: Q8 - Material treceability certification per EN 10204 3.1NOTE:For detailed specifications see ?Specifications?.This option is only available with range codes 2A and 3A, 316L SST or Alloy C-276 isolating diaphragm and silicone fill fluid.Performance Class code 3 is available with Measurement Type code D only.Materials of Construction comply with metallurgical requirements highlighted within NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Order with Q15 or Q25 to receive a NACE certificate. ?Assemble to? items are specified separately and require a completed model number. Process connection option codes B12, C11, D11, EA2, EA3, and EA5 are only available on differential Measurement Type, code D.Not available with output code F.This assembly is included with options EP, KP, E1, N1, K1, ND, E4, E7, N7, K7, E2, E3, KA, KC, KD, IA, IB, IE, IF, IG, KG, T1, K2, N3, EM, and KM.Valid when SuperModule Platform and housing have equivalent approvals.Not available with Housing code 7J.P1 is not available with 3051S_CA0.
