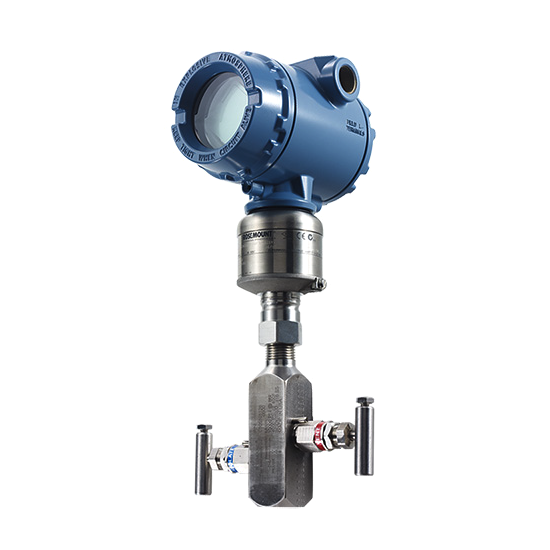

SpecificationsRangedown: Up to 200:1Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION fieldbusMeasurement Range: Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) AbsoluteProcess Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SSTDiagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse LineCertifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications3051S Scalable Pressure TransmitterFeaturesPatented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solutionBest-in-class, scalable architecture enhances performance, functionality and process connectionsTransmitter arrives fully assembled and leak tested for simple installation and maintenanceAll-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracyUltra and Ultra for Flow performance classes deliver 15-year stability and 15-year limited warranty200:1 rangedown produce reliable measurements and wide application flexibilityIntegrates seamlessly with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibilitySIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installationsAdvanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditionsRemote display and interface offers easy access to process and device informationOrdering InformationModel3051SScalable pressure transmitterPerformance class2Classic: 0.035% span accuracy, 150:1 rangedown, 15-year stabilityConnection typeTIn-line Measurement typeGGaugePressure range3A–14.7 to 800 psi (–1.01 to 55.15 bar)Isolating diaphragm2316L SSTProcess connectionE11½–14 NPT female Transmitter outputA4–20 mA with digital signal based on HART® protocol Housing style1APlantWeb housingMaterial: AluminumConduit size entry: 1/2–14 NPTMounting bracket B4Bracket, all SST, 2-in. pipe and panelHardware adjustmentsD1Hardware adjustments (zero, span, alarm, security) Sensor fill fluidL1Inert sensor fill fluid Display typeM5Plantweb™ LCD displaySpecial cleaning P2Cleaning for special services
