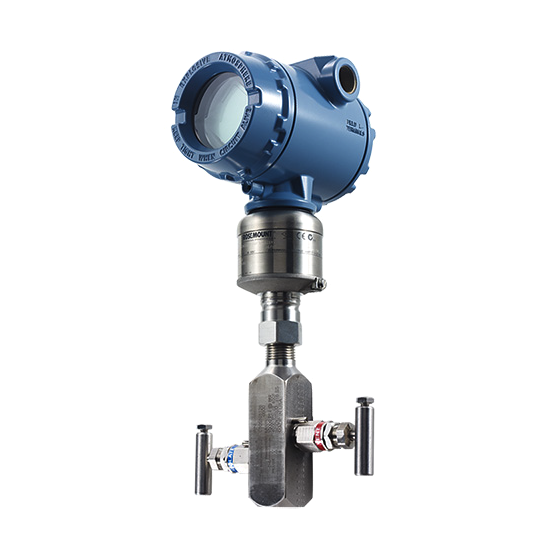

SpecificationsRangedown: Up to 200:1Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION fieldbusMeasurement Range: Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) AbsoluteProcess Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SSTDiagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse LineCertifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications3051S Scalable Pressure TransmitterFeaturesPatented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solutionBest-in-class, scalable architecture enhances performance, functionality and process connectionsTransmitter arrives fully assembled and leak tested for simple installation and maintenanceAll-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracyUltra and Ultra for Flow performance classes deliver 15-year stability and 15-year limited warranty200:1 rangedown produce reliable measurements and wide application flexibilityIntegrates seamlessly with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibilitySIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installationsAdvanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditionsRemote display and interface offers easy access to process and device informationOrdering InformationModel3051SScalable pressure transmitterPerformance class(1)2Classic: 0.035% span accuracy, 150:1 rangedown, 15-yr stabilityConnection typeCCoplanarMeasurement type(2)DDifferentialPressure range3A-1000 to 1000 inH2O (-2,49 to 2,49 bar)Isolating diaphragm2(3)316L SSTE12Process connection: Coplanar flangeSize: 1/4–18 NPTFlange material: SSTDrain vent: 316 SSTBolting: N/ATransmitter outputA4–20 mA with digital signal based on HART protocol1AHousing style: PlantWeb housingMaterial: AluminumConduit entry size: 1/2–14 NPTHardware adjustments(5)(6)(7)D1Hardware adjustments (zero, span, alarm, security)Display type(8)M5PlantWeb LCD displayCalibration certificationQ4Calibration certificateFor detailed specifications see “Specifications” on page 102.Performance Class code 3 is available with Measurement Type code D only.Materials of Construction comply with metallurgical requirements highlighted within NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Order with Q15 or Q25 to receive a NACE certificate.Isolator diaphragm selection will dictate materials of construction for wetted parts. Not available with output code F. Not available with output code X Not available with housing style codes 00, 2E, 2F, 2G, 2M, 5A, 5J, or 7J.Not available with Housing code 7J.
