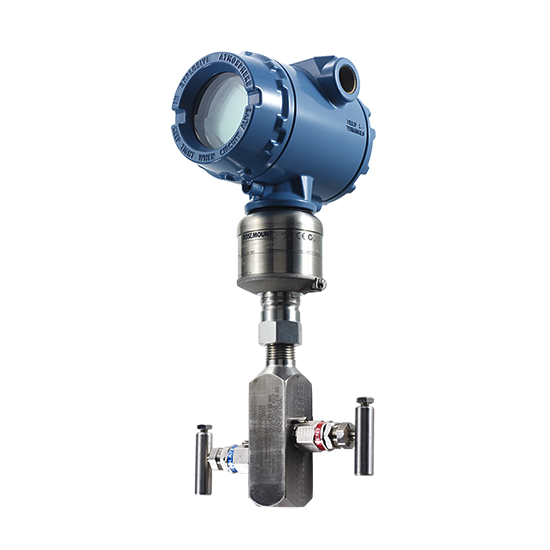

SpecificationsRangedown: Up to 200:1Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION fieldbusMeasurement Range: Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) AbsoluteProcess Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SSTDiagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse LineCertifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications3051S Scalable Pressure TransmitterFeaturesPatented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solutionBest-in-class, scalable architecture enhances performance, functionality and process connectionsTransmitter arrives fully assembled and leak tested for simple installation and maintenanceAll-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracyUltra and Ultra for Flow performance classes deliver 15-year stability and 15-year limited warranty200:1 rangedown produce reliable measurements and wide application flexibilityIntegrates seamlessly with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibilitySIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installationsAdvanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditionsRemote display and interface offers easy access to process and device informationOrdering InformationModel3051SScalable pressure transmitterPerformance class(1)2Classic: 0.035% span accuracy, 150:1 rangedown, 15-yr stabilityConnection typeCCoplanarMeasurement type(2)DDifferentialPressure range2A-250 to 250 inH2O (-621,60 to 621,60 mbar)SmartPower™(3)1Adapter for Black Power Module (I.S. Power Module sold separately)1AHousing style: PlantWeb housingMaterial: AluminumConduit entry size: 1/2–14 NPT 1BHousing style: PlantWeb housingMaterial: AluminumConduit entry size: M20 x 1.5 Hardware adjustments(4)(5)(6)D1Hardware adjustments (zero, span, alarm, security)Product certifications(7)I1ATEX Intrinsic SafetyDisplay type(8)M5PlantWeb LCD displayMaximum static line pressureP0(9)6092 psig (420 bar) static pressure limit (Rosemount 3051S2CD only)Pressure testing(10)P1Hydrostatic testing with certificateCalibration certificationQ4Calibration certificateMaterial traceability certificationQ8Material traceability certification per EN 10204 3.1For detailed specifications see “Specifications” on page 102.Performance Class code 3 is available with Measurement Type code D only.Long-Life Power Module must be shipped separately, order Power Module 701PBKKF.Not available with output code F.Not available with output code X.Not available with housing style codes 00, 2E, 2F, 2G, 2M, 5A, 5J, or 7J.Valid when SuperModule Platform and housing have equivalent approvals. Not available with Housing code 7J.Requires 316L SST, Alloy C-276, or Gold-plated 316L SST diaphragm material, assemble to Rosemount 305 integral manifold or DIN-compliant traditional flange process connection, and bolting option L8. Limited to Pressure Range (Differential), ranges 2A – 5A.P1 is not available with 3051S_CA0.
