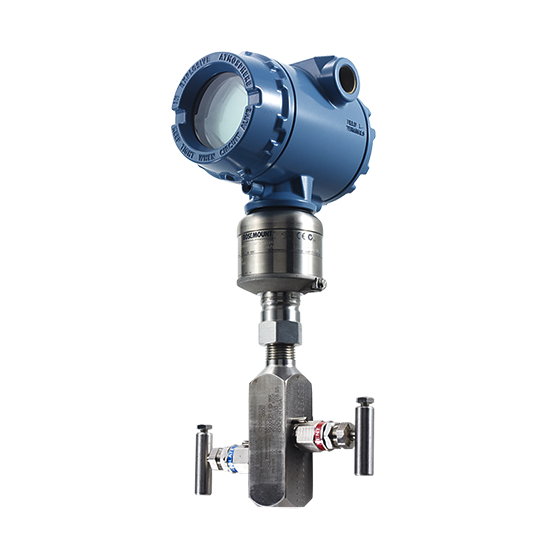

SpecificationsRangedown: Up to 200:1Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION fieldbusMeasurement Range: Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) AbsoluteProcess Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SSTDiagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse LineCertifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications3051S Scalable Pressure TransmitterFeaturesPatented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solutionBest-in-class, scalable architecture enhances performance, functionality and process connectionsTransmitter arrives fully assembled and leak tested for simple installation and maintenanceAll-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracyUltra and Ultra for Flow performance classes deliver 15-year stability and 15-year limited warranty200:1 rangedown produce reliable measurements and wide application flexibilityIntegrates seamlessly with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibilitySIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installationsAdvanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditionsRemote display and interface offers easy access to process and device informationOrdering InformationModel3051SScalable pressure transmitterPerformance class(1)1Ultra: 0.025% span accuracy, 200:1 rangedown, 15-yr stability, 15-yr limited warrantyConnection typeCCoplanarMeasurement type(2)DDifferentialPressure range3A-1000 to 1000 inH2O (-2,49 to 2,49 bar)Isolating diaphragm2(3)316L SSTProcess connectionA11(4)Assemble to Rosemount 305 integral manifoldTransmitter outputA4–20 mA with digital signal based on HART protocol1AHousing style: PlantWeb housingMaterial: AluminumConduit size entry: 1/2–14 NPTProduct certifications(5)KD(6)FM, CSA, and ATEX Explosion-proof, Intrinsically SafeDisplay type(7)M5PlantWeb LCD displayPressure testing(8)P1Hydrostatic testing with certificateCalibration certificationQ4Calibration certificateMaterial traceability certificationQ8Material traceability certification per EN 10204 3.1NACE® certificate(9)Q15Certificate of compliance to NACE MR0175/ISO 15156 for wetted materials Model 0305 Integral manifold Manufacturer RRosemount Manifold style C Coplanar Manifold type 5(10) Five-valve Materials of construction 2 Body: 316 SST/316L SSTBonnet: 316 SSTStem and tip/ball: 316 SST Process connection style B(11) ½–14 NPT female Packing material 1(12) PTFE Valve seat 1 Integral Mounting brackets B4 SST mounting bracket for 2-in. (50.8 mm) pipe mounting, 300 SST bolts Bolt materials L4(13) Austenitic 316 SST bolts Material recommendations for NACE SG Sour gas (meets NACE MR0175/ISO 15156, MR0103) For detailed specifications see “Specifications” on page 102.Performance Class code 3 is available with Measurement Type code D only.Materials of Construction comply with metallurgical requirements highlighted within NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Order with Q15 or Q25 to receive a NACE certificate.“Assemble to” items are specified separately and require a completed model number. Process connection option codes B12, C11, D11, EA2, EA3, and EA5 are only available on differential Measurement Type, code D.Valid when SuperModule Platform and housing have equivalent approvals. Not available with M20 or G 1/2 conduit entry size.Not available with Housing code 7J.P1 is not available with 3051S_CA0.NACE compliant wetted materials are identified by Footnote 5.Not available with traditional manifold style T.Not available with traditional manifold style code M. Manifold style code T does not include mounting holes on process flange.Includes PTFE tape on drain/vent valves and plugs.Not available with ASME B31.1 manifold type codes 7, 8, and 9.
