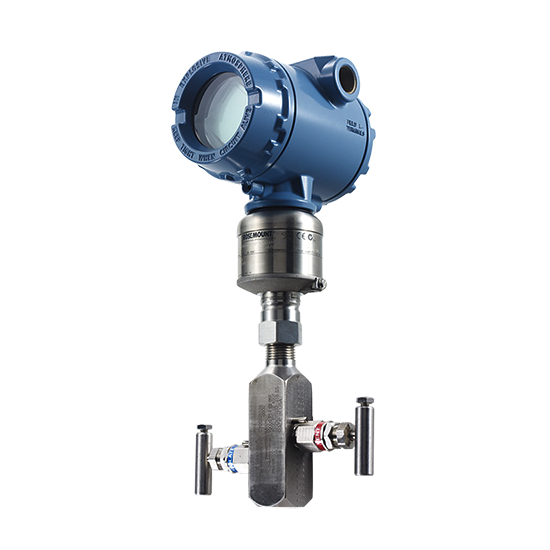

Part Number: 3051S1CD2A2A11A1BE1M5Q4Model: 3051S Scalable Pressure TransmitterManufacturer: RosemountSpecificationsRangedown: Up to 200:1Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION fieldbusMeasurement Range: Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) AbsoluteProcess Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SSTDiagnostics: Basic Diagnostics, Loop Integrity, Process Intelligence, Plugged Impulse LineCertifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications3051S Scalable Pressure TransmitterFeaturesPatented Rosemount Coplanar technology offers optimized performance as a pressure, DP Flow and DP Level solutionBest-in-class, scalable architecture enhances performance, functionality and process connectionsTransmitter arrives fully assembled and leak tested for simple installation and maintenanceAll-welded hermetic SST SuperModule platform resists overpressure and line pressure effects to ensure 0.025% accuracyUltra and Ultra for Flow performance classes deliver 15-year stability and 15-year limited warranty200:1 rangedown produce reliable measurements and wide application flexibilityIntegrates seamlessly with 4-20 mA HART®, WirelessHART®, FOUNDATION™ fieldbus protocols for application flexibilitySIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installationsAdvanced diagnostics provide diagnostic coverage to detect electrical loop issues and abnormal process conditionsRemote display and interface offers easy access to process and device informationOrdering InformationModel: 3051S - Scalable pressure transmitterPerformance class¹: 1 - Ultra: 0.025% span accuracy, 200:1 rangedown, 15-yr stability, 15-yr limited warrantyConnection type: C - CoplanarMeasurement type²: D - DifferentialPressure range: 2A - -250 to 250 in H2O (-621,60 to 621,60 mbar) Isolating diaphragm: 2³ - 316L SSTProcess connection: A114 - Assemble to Rosemount 305 integral manifoldTransmitter output: A - 4?20 mA with digital signal based on HART protocol1B: [Housing style] PlantWeb housing[Material] Aluminum[Conduit entry size] M20 x 1.5Product certifications5: E1 - ATEX FlameproofDisplay type6: M5 - PlantWeb LCD displayCalibration certification: Q4 - Calibration certificateNOTE:For detailed specifications see ?Specifications?.Performance Class code 3 is available with Measurement Type code D only.Materials of Construction comply with metallurgical requirements highlighted within NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Order with Q15 or Q25 to receive a NACE certificate. ?Assemble to? items are specified separately and require a completed model number. Process connection option codes B12, C11, D11, EA2, EA3, and EA5 are only available on differential Measurement Type, code D.Valid when SuperModule Platform and housing have equivalent approvals.Not available with Housing code 7J.
