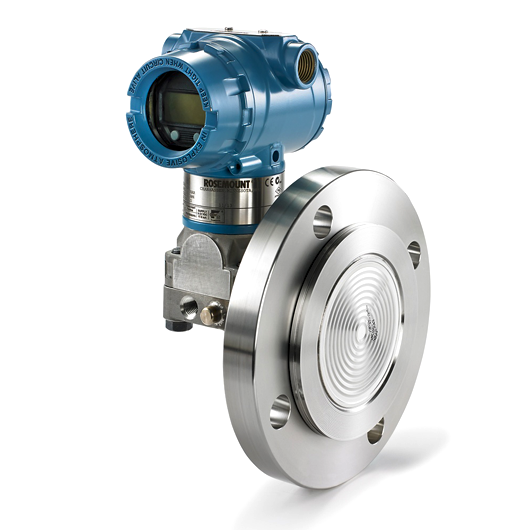

Ordering Information Model 3051L Level transmitter Pressure range 4 –300 to 300 psi (–20.68 to 20.68 bar) Transmitter output A(1) 4–20 mA with digital signal based on HART® Protocol Process connection size, material, extension length (high side) G0(2) Process connection size: 2-in./DN 50/AMaterial: 316L SSTExtension length: Flush mount only Mounting flange size, rating, material (high side) 9 Seal fill fluid D Description: Silicone 200 Specific gravity: 0.93Temperature limits (ambient temperature of 70° F [21° C]): –49 to 401 °F (–45 to 205 °C) Low pressure side 21 Configuration: DifferentialFlange adapter: SSTDiaphragm material: 316 SSTSensor fluid: Silicone O-ring A Glass-filled PTFE Housing material A Material: AluminumConduit entry size: ½–14 NPT Display and interface options M5 LCD display RCL HART revision configuration (requires HART Protocol output code A) HR5 Configured for HART Revision 5 HART Revision 5 is the default HART output.Materials of Construction comply with metallurgical requirements highlighted within NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
