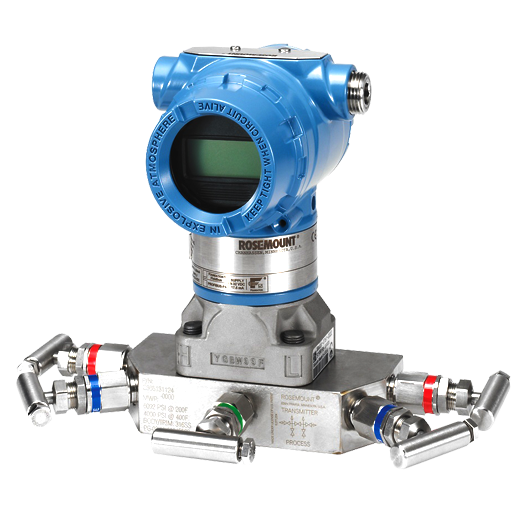

Ordering InformationModel3051C(1)Coplanar Pressure TransmitterMeasurement typeGGagePressure range5–14.2 to 2000 psi (-0,97 to 137,89 mbar)Transmitter outputA(2)4-20 mA with Digital Signal Based on HART ProtocolMaterials of construction0 Alternate Process ConnectionIsolating diaphragm2(3)316L SST O-ringAGlass-filled PTFESensor fill fluid1Silicone BHousing material: AluminumConduit entry size: M20 × 1.5Manifold assembly(4)S5Assemble to Rosemount 305 Integral Manifold Mounting bracket(5) I1(6) ATEX Intrinsic Safety and Dust Display and interface options M5 LCD Display Calibration certificate Q4 Calibration Certificate Material traceability certification Q8 Material Traceability Certification per EN 10204 3.1 Q32 Pressure testing P1 Hydrostatic Testing with Certificate Model 0305 Integral manifold Manufacturer R Rosemount Manifold Style C Coplanar Manifold Type 5(7)Five-valve Materials of construction 2 Body: 316 SST/316L SSTBonnet: 316 SSTStem and tip/ball: 316 SST Process connection style B(8) ½–14 NPT female Packing material 1(9) PTFE Valve seat 1 Integral Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.“Assemble-to” items are specified separately and require a completed model number.Panel mounting bolts are not supplied.Dust approval not applicable to Output Code X. See “IEC 62591 (WirelessHART Protocol)” on page 62 for wireless approvals.Not available with traditional manifold style T.Not available with traditional manifold style code M. Manifold style code T does not include mounting holes on process flange.Includes PTFE tape on drain/vent valves and plugs.
