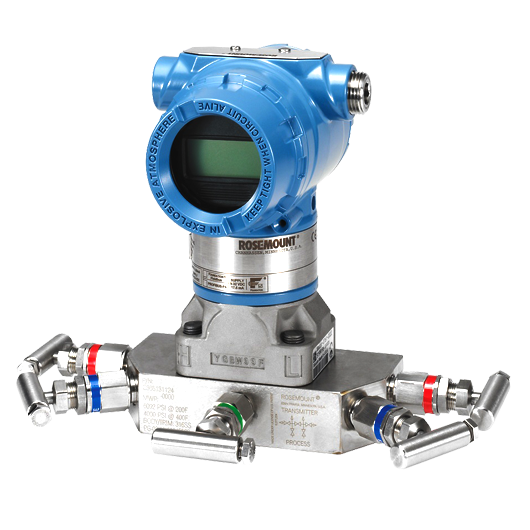

OverviewRosemount 3051C Coplanar Pressure Transmitters are the industry standard for differential, gage, and absolute pressure measurement. The coplanar platform enables seamless integration with manifolds, flow and level solutions. Capabilities include:Power advisory can proactively detect degraded electrical loop integrity issues(option code DA0)LOI with straightforward menus and built-in configuration buttons (option code M4)Safety Certification (option code QT) Ordering Information Model 3051C(1) Coplanar Pressure Transmitter Measurement type G Gage Pressure range 4 -14.2 to 300 psi (-0,97 to 20,68 bar) Transmitter output A(2) 4 - 20 mA with Digital Signal Based on HART Protocol Materials of construction 7(3) Process flange type: CoplanarFlange material: SSTDrain/vent: Alloy C-276 Isolating diaphragm 3(3) Alloy C-276 O-ring A Glass-filled PTFE Sensor fill fluid 1 Silicone B Housing material: AluminumConduit entry size: M20 × 1.5 Product certifications(4) I1 ATEX Intrinsic Safety and Dust Bolting materialL4 Austenitic 316 SST Bolts Display and interface options M5 LCD Display Pressure testingP1 Hydrostatic Testing with Certificate Calibration certificate Q4 Calibration Certificate Material traceability certificationQ8 Material Traceability Certification per EN 10204 3.1 Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.Dust approval not applicable to Output Code X. See “IEC 62591 (WirelessHART Protocol)” on page 62 for wireless approvals.
