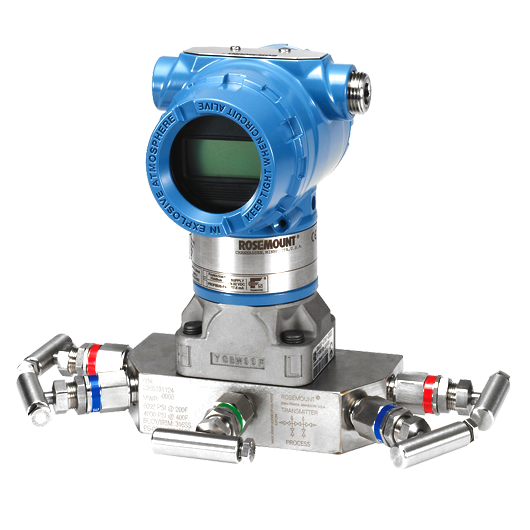

3051CG4A02A1AS5K5M5Q4Q8D4T1 | Rosemount Series 3051 Gauge Pressure Transmitter

Part Number: 3051CG4A02A1AS5K5M5Q4Q8D4T1 + R305EC22B11B4Model: 3051 Gauge Pressure TransmitterManufacturer: RosemountOverviewRosemount 3051C Coplanar Pressure Transmitters are the industry standard for differential, gage, and absolute pressure measurement. The coplanar platform enables seamless integration with manifolds, flow and level solutions. Capabilities include: Power advisory can proactively detect degraded electrical loop integrity issues(option code DA0) LOI with straightforward menus and built-in configuration buttons (option code M4) Safety Certification (option code QT) SpecificationsRangedown: Up to 150:1Communication Protocol: 4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HARTMeasurement Range: Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) AbsoluteProcess Wetted Material: 316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SSTDiagnostics: Basic Diagnostics, Loop IntegrityCertifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certificationsFeaturesOver 10 million Rosemount 3051 devices installed globally, providing reliable pressure readings in harsh environmentsPatented Rosemount Coplanar technology allows for direct mounting to multiple measurement applicationsFully-assembled pressure, level and flow solutions arrive ready-to-install for improved reliability and performanceComplete pressure assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibilityLocal Operator Interface (LOI) enables quick commissioning and provides easy access to process and device informationLoop Integrity diagnostics detect electrical loop issues for reduced downtimeSIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installations
