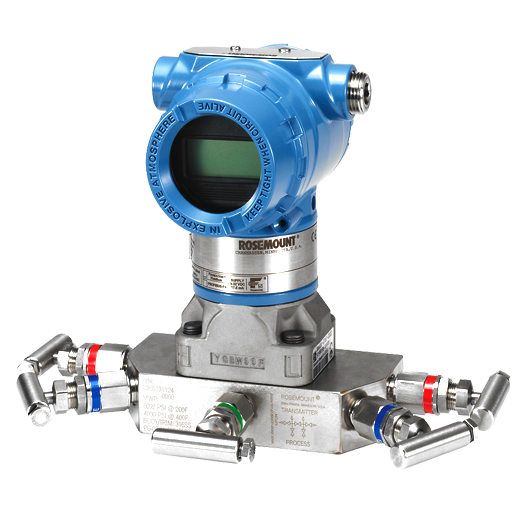

OverviewRosemount 3051C Coplanar Pressure Transmitters are the industry standard for differential, gage, and absolute pressure measurement. The coplanar platform enables seamless integration with manifolds, flow and level solutions. Capabilities include:Power advisory can proactively detect degraded electrical loop integrity issues(option code DA0)LOI with straightforward menus and built-in configuration buttons (option code M4)Safety Certification (option code QT) Ordering Information Model 3051C(1) Coplanar Pressure Transmitter Measurement type D Differential Pressure range 4 –300 to 300 psi (-20,68 to 20,68 bar) Transmitter output A(2) 4 - 20 mA with Digital Signal Based on HART Protocol Materials of construction 0 Alternate Process Connection Isolating diaphragm 2(3) 316L SST O-ring A Glass-filled PTFE Sensor fill fluid 1 Silicone A Housing material: AluminumConduit entry size: ½–14 NPT Manifold assembly(4) S5 Assemble to Rosemount 305 Integral Manifold Mounting bracket(5)B1 Traditional flange bracket, CS, 2-in. pipe Product certifications E8 ATEX Flameproof and Dust Certification Display and interface options M5 LCD Display Configuration buttons D4(6) Analog Zero and Span Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.“Assemble-to” items are specified separately and require a completed model number.Panel mounting bolts are not supplied.Only available with HART 4-20 mA Output (code A). Rosemount 305 Integral Manifold Model 0305 Integral manifold Manufacturer R Rosemount Manifold style C Coplanar Manifold type 3 Three-valve Materials of construction 2 Body: 316 SST/316L SSTBonnet: 316 SSTStem and tip/ball: 316 SST Process connection style B(1) ½–14 NPT female Packing material 2(2) Graphite-based Valve seat 1 Integral Not available with traditional manifold style code M. Manifold style code T does not include mounting holes on process flange.Includes graphite tape on drain/vent valves and plugs.
