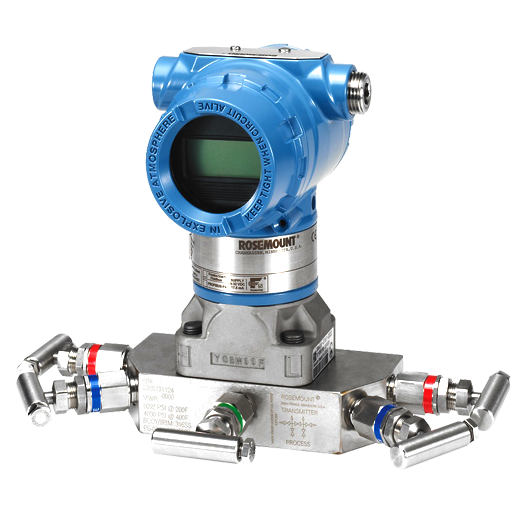

3051CD3A52A1AM5 | Rosemount 3051C Coplanar Pressure Transmitter

Part Number: 3051CD3A52A1AM5Ordering InformationModel: 3051C¹ - Coplanar Pressure TransmitterMeasurement type: D - DifferentialPressure range: 3 - ?1000 to 1000 inH2O (-2,48 to 2,48 bar)Transmitter output: A² - 4-20 mA with Digital Signal Based on HART ProtocolMaterials of construction: 5 - [Process flange type] Coplanar; [Flange material] Plated CS; [Drain/vent] SSTIsolating diaphragm: 2³ - 316L SSTO-ring: A - Glass-filled PTFESensor fill fluid: 1 - SiliconeHousing material: A - Aluminium; 1/2-14 NPT [Conduit entry size]Display and interface options: M5 - LCD DisplayNOTE:Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
