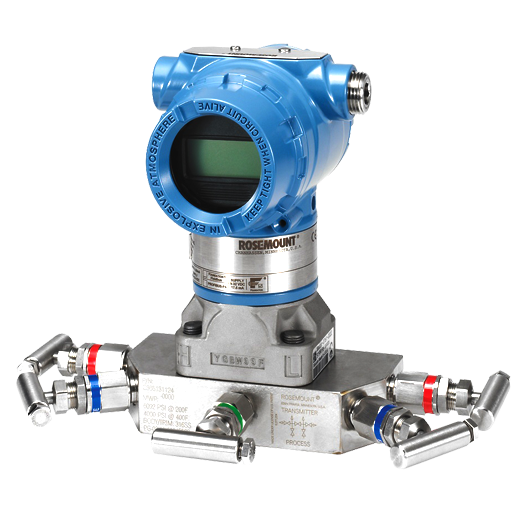

OverviewRosemount 3051C Coplanar Pressure Transmitters are the industry standard for differential, gage, and absolute pressure measurement. The coplanar platform enables seamless integration with manifolds, flow and level solutions. Capabilities include:Power advisory can proactively detect degraded electrical loop integrity issues(option code DA0)LOI with straightforward menus and built-in configuration buttons (option code M4)Safety Certification (option code QT) Ordering Information Model 3051C(1) Coplanar Pressure Transmitter Measurement type D Differential Pressure range 3 –1000 to 1000 inH2O (-2,48 to 2,48 mbar) Transmitter output A(2) 4 - 20 mA with Digital Signal Based on HART Protocol Materials of construction 2 Process flange type: CoplanarFlange material: SSTDrain/vent: SST Isolating diaphragm 2(3) 316L SST O-ring A Glass-filled PTFE Sensor fill fluid 1 Silicone B Housing material: AluminumConduit entry size: M20 × 1.5 Display and interface options M5 LCD Display Mounting bracket(4)B4 Coplanar flange bracket, all SST, 2-in. pipe and panel Ground screw V5(5)(6) External Ground Screw Assembly Pressure testing P1 Hydrostatic Testing with Certificate Calibration certificate Q4 Calibration Certificate HART Revision configuration HR5(2) Configured for HART Revision 5 Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.Panel mounting bolts are not supplied.Not available with Wireless Output (code X).The V5 option is not needed with the T1 option; external ground screw assembly is included with the T1 option.
