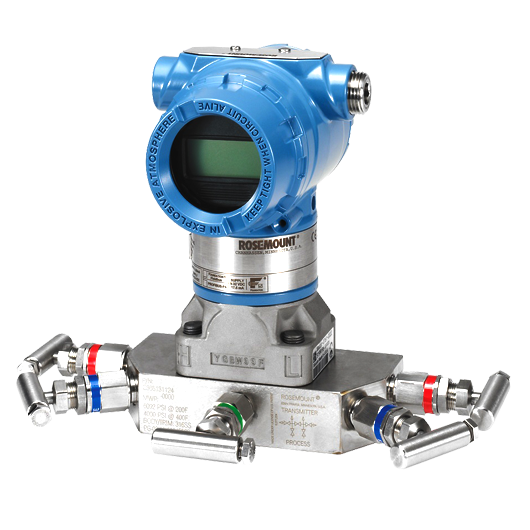

3051CD3A22A1BI1M5C1Q4 | Rosemount 3051C Coplanar Pressure Transmitter

Part Number: 3051CD3A22A1BI1M5C1Q4Ordering InformationModel: 3051C¹ - Coplanar Pressure TransmitterMeasurement type: D - DifferentialPressure range: 3 - ?1000 to 1000 inH2O (-2,48 to 2,48 bar)Transmitter output: A² - 4-20 mA with Digital Signal Based on HART ProtocolMaterials of construction: 2 - [Process flange type] Coplanar; [Flange material] SST; [Drain/vent] SSTIsolating diaphragm: 2³ - 316L SSTO-ring: A - Glass-filled PTFESensor fill fluid: 1 - SiliconeHousing material: B - Aluminium; [Conduit entry size] M20 × 1.5 Product certifications4: I1 - ATEX Intrinsic Safety and DustDisplay and interface options: M5 - LCD Display Software configuration: C15 - Custom Software Configuration (completed CDS 00806-0100-4007 for wired and 00806-0100-4100 for Wireless required with order)Calibration certificate: Q4 - Calibration certificateNOTE:Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Dust approval not applicable to Output Code X.Only available with HART 4-20 mA Output (output code A) and Wireless Output (output code X).
