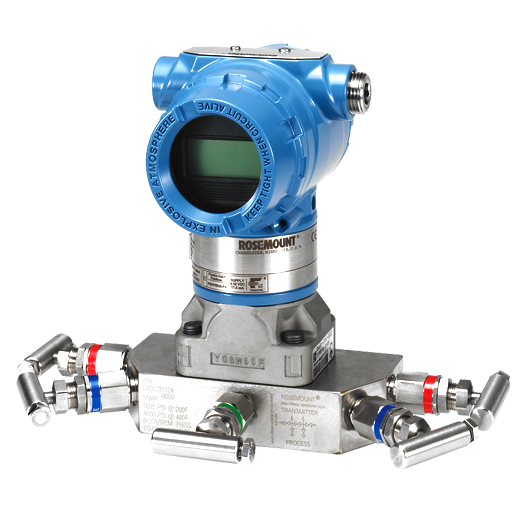

3051CD3A02A1KM5DOK8S5Q4 | Rosemount 3051C Coplanar Pressure Transmitter

Part Number: 3051CD3A02A1KM5DOK8S5Q4 Integral Manifold Model: 0305RC52B11B4L4Ordering InformationModel: 3051C¹ - Coplanar Pressure TransmitterMeasurement type: D - DifferentialPressure range: 3 - -1000 to 1000 inH2O (-2,48 to 2,48 bar)Transmitter output: A² - 4-20 mA with Digital Signal Based on HART ProtocolMaterials of construction: 0 - Alternate Process Connection Isolating diaphragm: 2³ - 316L SSTO-Ring: A - Glass-filled PTFESensor fill fluid: 1 - SiliconeHousing material: K - SSTConduit entry size: M20x 1.5Display and interface options: M5 - LCD DisplayConduit plug: DO4,5 - 316 SST Conduit PlugProduct certifications: K8 - ATEX Flameproof, Intrinsic Safety, Type n, Dust (combination of E8, I1 and N1)Manifold assembly6: S5 - Assemble to Rosemount 305 Integral ManifoldCalibration certificate: Q4 - Calibration certificateNOTE:Selected Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.Not available with Wireless Output (code X).Transmitter is shipped with a 316 SST Conduit plug (uninstalled) in place of standard carbon steel conduit plug."Assemble-to" items are specified separately and require a completed model number.
