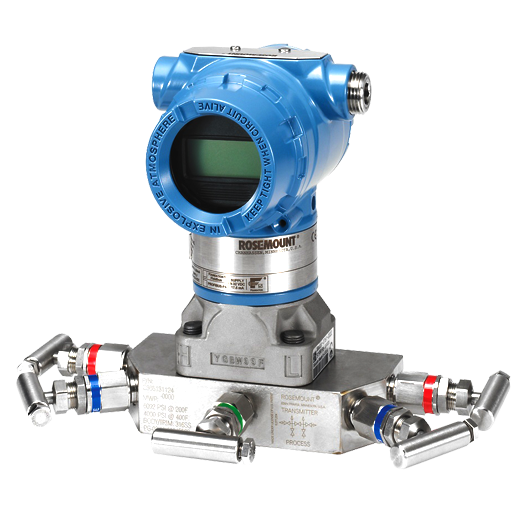

OverviewRosemount 3051C Coplanar Pressure Transmitters are the industry standard for differential, gage, and absolute pressure measurement. The coplanar platform enables seamless integration with manifolds, flow and level solutions. Capabilities include:Power advisory can proactively detect degraded electrical loop integrity issues(option code DA0)LOI with straightforward menus and built-in configuration buttons (option code M4)Safety Certification (option code QT) Ordering Information Model 3051C(1) Coplanar Pressure Transmitter Measurement type D Differential Pressure range 3 –1000 to 1000 inH2O (-2,48 to 2,48 mbar) Transmitter output A(2) 4 - 20 mA with Digital Signal Based on HART Protocol Materials of construction 0 Alternate Process Connection Isolating diaphragm 2(3) 316L SST O-ring A Glass-filled PTFE Sensor fill fluid 1 Silicone A Housing material: AluminumConduit entry size: ½–14 NPT Software configuration C1(4) Custom Software Configuration (completed CDS 00806-0100-4007 for wired and 00806-0100-4100 for Wireless required with order) Display and interface optionsM5 LCD Display Mounting bracket(5) B7 Traditional flange bracket, B1 with SST bolts Alternate flange(6) H2 Traditional Flange, 316 SST, SST drain/vent Bolting material L4 Austenitic 316 SST Bolts Calibration certificate Q4 Calibration Certificate Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.Only available with HART 4-20 mA Output (output code A) and Wireless Output (output code X)Panel mounting bolts are not supplied.Requires 0 code in Materials of Construction for Alternate Process Connection.
