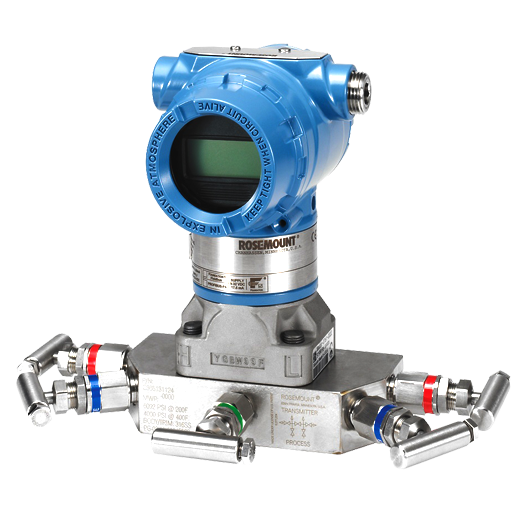

Ordering Information Model 3051C(1) Coplanar Pressure Transmitter Measurement type D Differential Pressure range 1 –25 to 25 inH2O (-62,16 to 62,16 mbar) Transmitter output A(2) 4-20 mA with Digital Signal Based on HART Protocol Materials of construction 2 Process flange type: CoplanarFlange material: SSTDrain/vent: SST Isolating diaphragm 2(3) 316L SST O-ring A Glass-filled PTFE Sensor fill fluid 1 Silicone A Housing material: AluminumConduit entry size: ½–14 NPT Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
