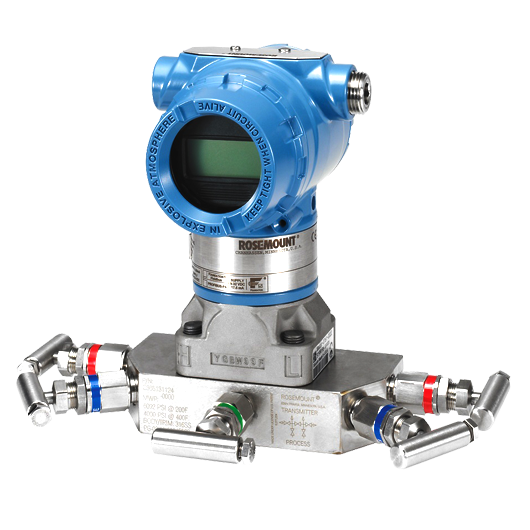

Ordering Information Model 3051C(1) Coplanar Pressure Transmitter Measurement type D Differential Pressure range 1 –25 to 25 inH2O (-62,16 to 62,16 mbar) Transmitter output A(2) 4-20 mA with Digital Signal Based on HART Protocol Materials of construction 0 Alternate Process Connection Isolating diaphragm 2(3) 316L SST O-ring A Glass-filled PTFE Sensor fill fluid 1 Silicone Housing material A AluminumConduit entry size: ½–14 NPT Manifold assembly(4) S5 Assemble to Rosemount 305 Integral Manifold Display and interface options M5 LCD Display Calibration certificate Q4 Calibration Certificate Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.“Assemble-to” items are specified separately and require a completed model number.Integral Manifold Model 0305 Integral manifold Manufacturer R Rosemount Manifold style C Coplanar Manifold type 5(1) Five-valve Materials of construction 2 Body: 316 SST/316L SST Bonnet: 316 SSTStem and tip/ball: 316 SST Process connection style B(2) ½–14 NPT female Packing material 1(3) PTFE Valve seat 1 Integral Bolt materials L4(4) Austenitic 316 SST bolts Not available with traditional manifold style T.Not available with traditional manifold style code M. Manifold style code T does not include mounting holes on process flange.Includes PTFE tape on drain/vent valves and plugs.Not available with ASME B31.1 manifold type codes 7, 8, and 9.
