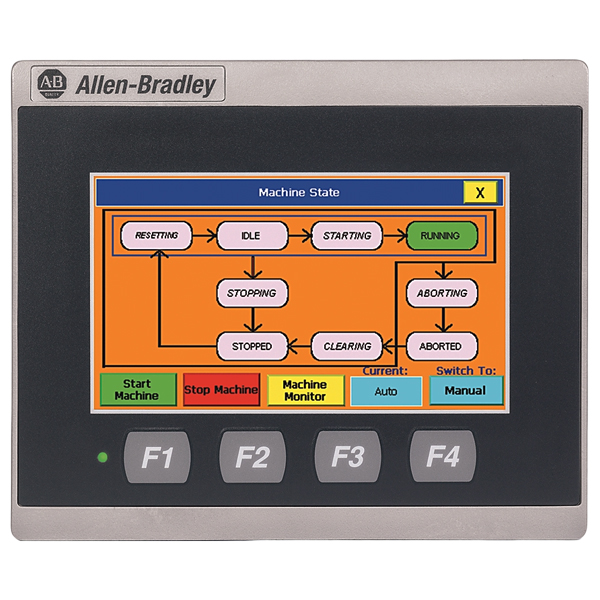

2711R-T4T | Allen Bradley PanelView 800 4.3" HMI Terminal

Part Number: 2711R-T4TModel: PanelView 800 TerminalManufacturer: Allen BradleyGeneral SpecificationsDisplay type: Color transmissive TFT active matrix LCD, widescreen formatDisplay size: 4 in.Display area: 95 x 53.9 mm (3.74 x 2.12 in.)Resolution (pixels): 480 x 272Backlight lifespan, min: 40,000 hoursOperator input: Analog touch and function keysMemory card: USB port and micro-SD (Secure Digital) card – Industrial grade micro-SD cards recommended. Supports SDSC and Class 6 & Class 10 SDHC micro-SD cards, FAT32/16 formats, up to 32 GB maximum size.Programming port: Ethernet portBattery lifespan, min: 5 years @ 25 °C (77 °F)Real-time clock: YesInput voltage range: 18…32V DC (24V DC nom)Power consumption, max: 9 W (0.39 A @ 24V DC)Weight, approx.: 0.333 kg (0.73 lb)Dimensions (HxWxD), approx.: 116 x 138 x 43 mm (4.56 x 5.43 x 1.69 in.)Wire size: Input Power Terminal BlockStranded or solid, Cu 90 °C (194 °F)Single-Wire Gauge: 0.33…2.08 mm² (22...14 AWG)Dual-wire Gauge: 0.33…1.31 mm² (22…16 AWG)Wire type: CopperWiring category: 3 - on power ports2 - on communication portsEnclosure type ratings: Meets NEMA/UL Type 4X (indoor) 12, 13, and IP65North American Temp Code: T4AUse this Conductor Category information for planning conductor routing.
