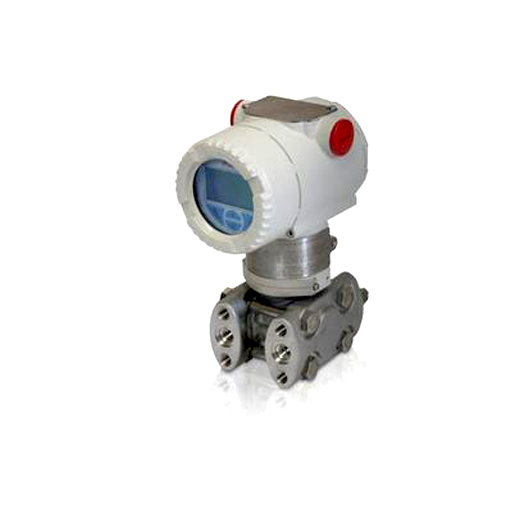

Product Number : 266PSH-F-S-S-A-2-A-1-V2-E1-L1-C1-H3Base Model266PSHGauge Pressure Transmitter ? BASE ACCURACY 0.06 %Sensor - Span LimitsF0.4 and 40 kPa4 and 400 mbar1.6 and 160 inH2OUse codeSDiaphragm material / Fill fluid (wetted parts)SAISI 316 L ssSilicone oilNACE¹Process flanges/adapters material and connecti on (wetted parts)AAISI 316 L ss (Horizontal connection)1/4 in. ? 18 NPT-f directNACEBolts/Gasket (wetted parts)2AISI 316 ssPTFE2, 3, 4Housing material and electrical connectionAAluminium alloy (barrel version)1/2 in. ? 14 NPTOutput/Additional options1Advanced HART and 4 to 20 mA (includes option R1)Options requested by ?Additional ordering code?5Drain/vent valve (material and positi on) (wetted parts)V2AISI 316 L sson flange side topNACE4, 6Hazardous area certificationsE1ATEX Intrinsic Safety II 1 G and II 1/2 G Ex ia IIC T6/T5/T4; II 1 D Ex iaD 20 T85 °C and II 1/2D Ex iaD 21 T85 °C 5, 7Integral LCDL1Digital LCD integral display with integrated keypad 8Certificates (up to 2 different selections allowed)C1Inspection certificate EN 10204?3.1 of calibration (9-point)Material traceabilityH3Inspection certificate EN 10204?3.1 of process wetted parts(1) Not available with sensor code A and B.(2) Suitable for oxygen service.(3) Not available with sensor code A.(4) Not available with Process Flanges/Adapters material/connection code P, Z.(5) Not available with Housing code G, Z, W.(6) Not available with Process flanges/adapters material/connection code D, E , G, H, M, S, U, V.(7) Not available with Housing code E, K.(8) Not available with Output code 7.
