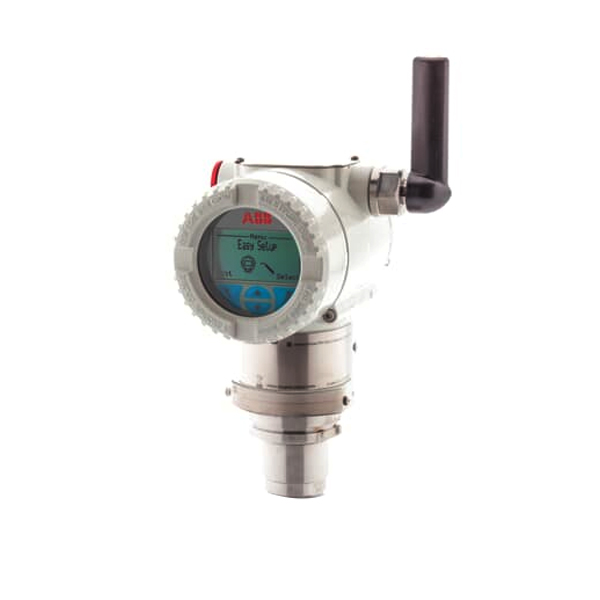

266NSHMKBB1L1 | ABB Absolute Pressure Transmitter

Артикул: QT-39989
от 559 215 ₸
В наличии: 0

Предложения складов

СкладЦенаВ тенгеОстатокДоставка

Характеристики

Estimated Lead Time8 Weeks
ID каталога43802
ManufacturerABBOrdering InformationModel: 266NSH - Absolute Pressure Transmitter – BASE ACCURACY 0.075 %SENSOR - Span limits: M - 10 and 600 kPa; 0.1 and 6 bar; 1.45 and 87 psiDiaphragm material / Fill fluid (wetted parts): K - Hastelloy C-276™; Silicone oil; NACEProcess connection (wetted parts): B - AISI 316 L ss; 1/2 – 14 NPT-f female; NACEHousing material and electrical connection: B - Aluminium alloy (barrel version); M20 x 1.5 (CM 20)Output/Additional options: 1 - HART digital communication and 4 to 2
Model266NSH Absolute Pressure Transmitter
Part Number266NSHMKBB1L1
Shipping Weight10 Kg
Артикул266NSHMKBB1L1

Описание

Part Number: 266NSHMKBB1L1Model: 266NSH Absolute Pressure TransmitterManufacturer: ABBOrdering InformationModel: 266NSH - Absolute Pressure Transmitter – BASE ACCURACY 0.075 %SENSOR - Span limits: M - 10 and 600 kPa; 0.1 and 6 bar; 1.45 and 87 psiDiaphragm material / Fill fluid (wetted parts): K - Hastelloy C-276™; Silicone oil; NACEProcess connection (wetted parts): B - AISI 316 L ss; 1/2 – 14 NPT-f female; NACEHousing material and electrical connection: B - Aluminium alloy (barrel version); M20 x 1.5 (CM 20)Output/Additional options: 1 - HART digital communication and 4 to 20 mA¹Integral LCD: L1 - Digital LCD integral displayNot available with Housing code G, Z, W
