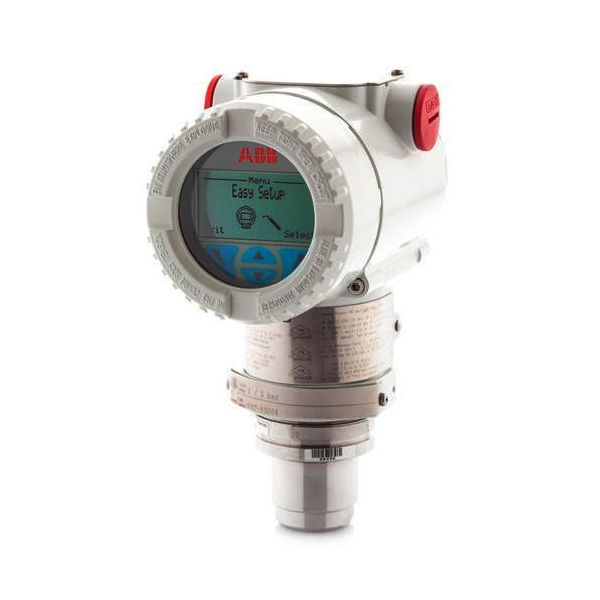

266HSHSKEA1L1B6S2 | ABB Gauge Pressure Transmitter

Ordering Information Model 266HSH Gauge Pressure Transmitter – BASE ACCURACY 0.06 % SENSOR - Span limit S 160 and 16000 kPa1.6 and 160 bar23.2 and 2320 psi Diaphragm material / Fill fluid (wetted parts) K Hastelloy C-276™Silicone oilNACE Process connection (wetted parts) E Hastelloy C-276™ 1/2 – 14 NPT-f female(Note 1)NACE Housing material and electrical connection A AISI 316 L ss (barrel version) 1/2 – 14 NPT Output/Additional options 1HART digital communication and 4 to 20 mAOptions requested by “Additional ordering code”(Note 2) Integral LCD L1 Digital LCD integral display B6 Surge S2 Surge/Transient Protector Notes.Not available with diaphragm code S, A, L, M, C, 4, 8, 9, INot available with Housing code G, Z, W
