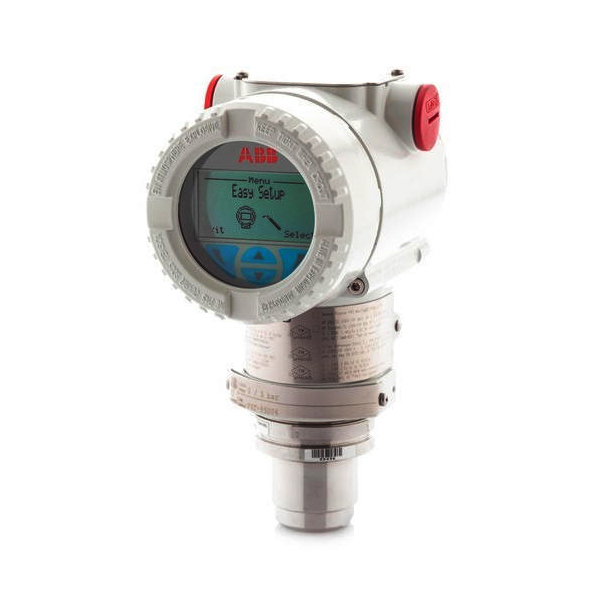

Ordering Information Model 266HSH Gauge Pressure Transmitter – BASE ACCURACY 0.06 % SENSOR - Span limit Q 80 and 8000 kPa0.8 and 80 bar11.6 and 1160 psi Diaphragm material / Fill fluid (wetted parts) S AISI 316 L ssSilicone oil(Note 1)NACE Process connection (wetted parts) T AISI 316 L ss1/2 – 14 NPT-f male(Note 2)NACE Housing material and electrical connection S AISI 316 L ss ( barrel version) 1/2 – 14 NPT Output/Additional options 1 HART digital communication and 4 to 20 mAOptions requested by “Additional ordering code”(Note 3) Hazardous area certifications E4 FM Approvals (Canada) approval(Note 4) Integral LCD L1 Digital LCD integral display B7 Notes.Not available with Sensor code VNot available with diaphragm code M, T, C, D, 4, 5Not available with Housing code G, Z, WNot available with Housing code J, K, W
