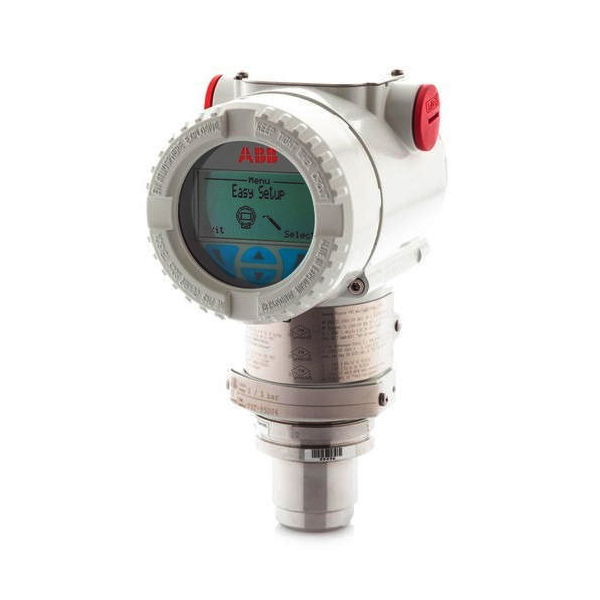

266HSHMSBB1B6I2N4C6H3A1 | ABB 266HSH High Overload Gauge Pressure Transmitter

Ordering Information Model 266HSH Gauge Pressure Transmitter – BASE ACCURACY 0.06 % SENSOR - Span limit M 6 and 600 kPa 0.06 and 6 bar 0.87 and 87 psi Diaphragm material / Fill fluid (wetted parts) S AISI 316 L ss Silicone oil (Note 2) NACE Process connection (wetted parts) B AISI 316 L ss 1/2 – 14 NPT-f male (Note 2, 3) NACE Housing material and electrical connection B Aluminium alloy (barrel version) M20 x 1.5 (CM 20) (TO BE USED for WirelessHART) (Note 1) Output/Additional options 1 HART and 4 to 20 mA – Advanced functionality (includes option R1) Mounting bracket (shape and material) B6 For pipe/wall mounting – Carbon steel (Not suitable for AISI housing) Additional tag plate I2 Tag and certification stainless steel plates (laser printed) Configuration N4 Standard – Pressure = inH2O/ psi at 20 °C; Temperature = deg. C Certificates (multiple selection allowed) C6 Certificate of compliance with the order EN 10204–2.1 of instrument design Material traceability H3 Inspection certificate EN 10204–3.1 of process wetted parts (not for gaskets) (Note 1) Accessory A1 Manifold mounting and pressure test (Note 1) Notes.Not available NSF/ANSI 61 approval code YNNot available with diaphragm codes M, T, C, DNot available with Sensor code Z Ordering Information for Model M26 Manifold Model M26 Manifold model for pressure transmitter Design P Manifold for P Style transmitters Revision A Revision A Body configuration S Standard construction Valves 2 Two-valve manifold Valve Type V Standard Material (wetted parts) S Stainless steel AISI 316L Packing material P PTFE Gasket material (wetted parts) N None Manifold process connection (INLET) F Threaded 1/2 in. - 14 NPT-female Manifold transmitter connection (OUTLET) M Threaded 1/2 in. - 14 NPT-male (Note 1) Rating 1 690 bar (69 MPa, 10000 psi) (Note 1, 2) Transmitter fixing bolts N None (Note 1) Bracket kit N None Material traceability 2 Inspection certificate EN 10204–3.1 of process wetted parts (all manifold components) Notes.Not available with design code DNot available with material (wetted parts) code M
