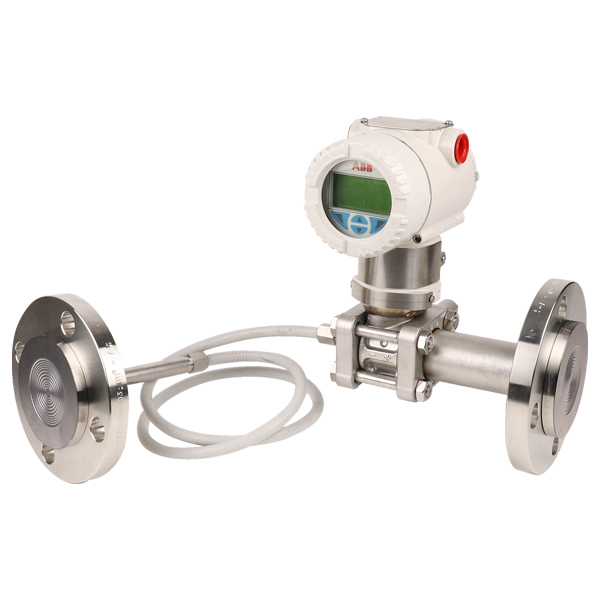

Ordering Information Base Model 266HRH Gauge Pressure Transmitter with remote seal – BASE ACCURACY 0.06 % SENSOR - Span limits P 40 and 2400 kPa 0.4 and 24 bar 5.8 and 348 psi Diaphragm material / Fill fluid R AISI 316 L ss Silicone oil (Note 1) NACE Process connection R Remote seal (except button type) (one seal to be quoted separately) Housing material and electrical connection A Aluminium alloy ( barrel version) 1/2 – 14 NPT (Note 2) Output/Additional options 7 HART and 4 to 20 mA - Standard functionality (Note 1, 3) Integral LCD LS Integrated digital LCD display (ONLY SELECTABLE WITH OUTPUT CODE 7) (Note 4) Mounting bracket (shape and material) B7 For pipe/wall mounting - AISI 316 L ss NOTE:Not available with Sensor code ZNot available with Output code 9Not available with Sensor code WNot available with Hazardous area certification code WM, WN, WP
