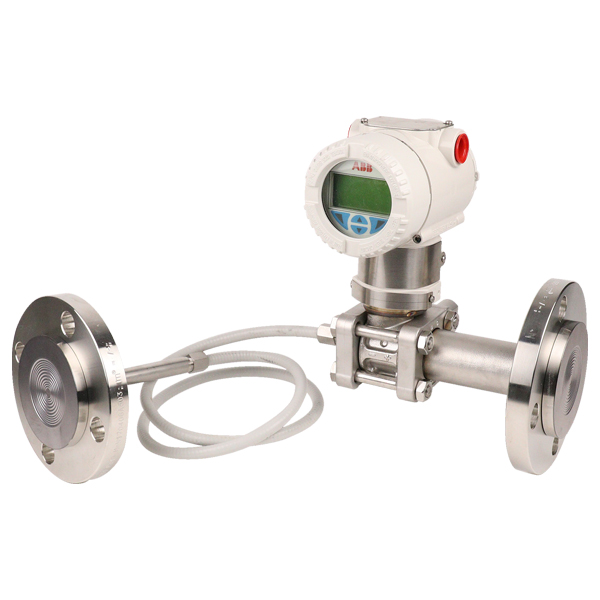

266HRHMRRA7LSB7R1M5C1 | ABB 266HRH Gauge Pressure Transmitter with S26RA Diaphragm Seal

Ordering Information Base Model 266HRH Gauge Pressure Transmitter with remote seal – BASE ACCURACY 0.06 % SENSOR - Span limits M 10 and 600 kPa 0.1 and 6 bar 1.45 and 87 psi Diaphragm material / Fill fluid R AISI 316 L ss Silicone oil (Note 1) NACE Process connection R Remote seal (except button type) (one seal to be quoted separately) Housing material and electrical connection A Aluminium alloy ( barrel version) 1/2 – 14 NPT (Note 2) Output/Additional options 7 HART and 4 to 20 mA - Standard functionality (Note 1, 3) Integral LCD LS Integrated digital LCD display (ONLY SELECTABLE WITH OUTPUT CODE 7) (Note 4) Mounting bracket (shape and material) B7 For pipe/wall mounting - AISI 316 L ss External non intrusive Z, S and WP pushbuttons R1 Transmitters with external pushbutton Operating manual M5 English Certificates C1 Inspection certificate EN 10204–3.1 of calibration (9-point) NOTE:Not available with Sensor code ZNot available with Output code 9Not available with Sensor code WNot available with Hazardous area certification code WM, WN, WP Ordering Information for model S26RA Rotating flange diaphragm seals (flush and extended) to ASME B16.5 Model S26RA Rotating flange diaphragm seal (Raised face flush and extended) to ASME B16.5 Transmitter Side of Connection H High pressure side Mounting Flange Rating / Size E1 ASME CL 150 / 2 in. Mounting Flange Material S Dual Grade AISI 316 ss Extensions Length and Material F Flush Diaphragm Material SM AISI 316 L ss (Note 1) NACE Seal Surface Finish 2 Smooth (Note 2) Capillary Protection N Extension tube for direct mount seal (Note 3) Capillary Length m (Feet) 1 Direct-mount construction (Note 4) Fill Fluid S Silicone oil PMX 200 10 cSt (-40 to 250 °C; -40 to 480 °F) Flushing Ring: Hole and Thread N None (TO BE SELECTED FOR EXTENDED VERSIONS) Flushing Ring Material N None (Note 5) Flushing Ring: Plug and Gasket N No plug - No gasket NOTE:Not available with extensions length and material code 2, 4, 6Not available with diaphragm material code ZMNot available with transmitter side of connection code LNot available with capillary protection code A, BNot available with Flushing ring: hole and thread code 2, 3, 4, 5
