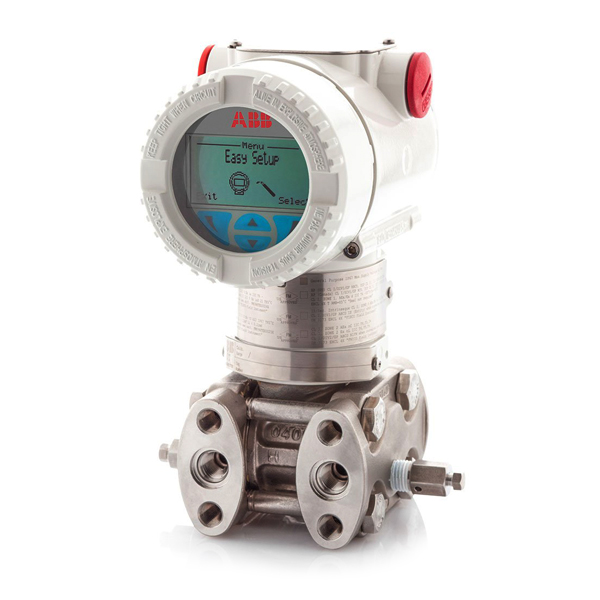

Ordering Information Model 266DSH Differential Pressure Transmitter – BASE ACCURACY 0.06 % SENSOR - Span limits M 6 and 600 kPa 0.06 and 6 bar 0.87 and 87 psi Application S Differential measurement at standard static pressure Diaphragm material / Fill fluid (wetted parts) K Hastelloy® C-276 Silicone oil (Note 1) NACE Process flanges/adapters material and connection (wetted parts) A AISI 316 L ss (Horizontal connection)1/4 in. – 18 NPT-f direct NACE Bolts/Gasket (wetted parts) 2 For standard static, high static and gauge versionsAISI 316 ssPTFE(Notes 2, 3, 4, 5)NACE (non exposed) Housing material and electrical connection A Aluminium alloy ( barrel version)1/2 in. – 14 NPT(Notes 6) Output/Additional options 1 HART and 4 to 20 mA - Advanced functionality (includes option R1) Drain/vent valve (material and position) (wetted parts) V2 AISI 316 L ss on flange side top (Notes 3, 7, 8) NACE Integral LCD L1 Digital LCD integral display with integrated keypad(Note 9) Notes.Not available NSF/ANSI 61 approval code YNSuitable for oxygen serviceNot available with sensor code A Not available with Process Flanges/Adapters material/connection code P, ZNot available with flange mounted version - Process flanges/adapters material/connection code RNot available with Output code 9Not available with Process flanges/adapters material/connection code D, E, G, H, M, S, U, V Not available with high static pressure code HNot available with Output code 7
