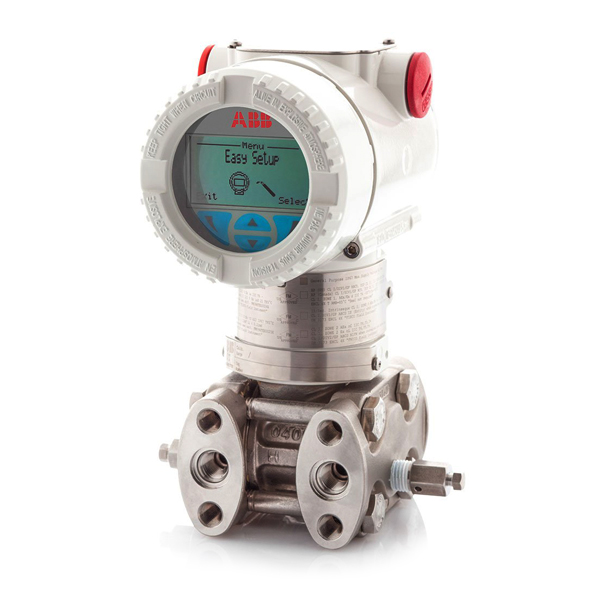

Ordering Information Model 266DSH Differential Pressure Transmitter – BASE ACCURACY 0.06 % SENSOR - Span limits M 6 and 600 kPa 0.06 and 6 bar 0.87 and 87 psi Application H Differential measurement at high static pressure (REMARK) (Note 1) Diaphragm material / Fill fluid (wetted parts) S AISI 316 L ss Silicone oil (Note 2) NACE Process flanges/adapters material and connection (wetted parts) A AISI 316 L ss (Horizontal connection)1/4 in. – 18 NPT-f directNACE Bolts/Gasket (wetted parts) 4 For standard static, gauge and flange mounted versionsAISI 316 ss – MWP = 16 MPaPTFE(Notes 3, 4)NACE (non exposed) Housing material and electrical connection A Aluminium alloy (barrel version)1/2 in. – 14 NPT(Notes 5) Output/Additional options 1 HART and 4 to 20 mA - Advanced functionality (includes option R1) Integral LCD L5 Digital LCD integral display with TTG (Through-The-Glass) activated keypad (Note 6) Mounting bracket (shape and material) B Notes.Not available NSF/ANSI 61 approval code YN.Not available with sensor code A and BSuitable for oxygen service.Not available with Process Flanges/Adapters material/connection code P, ZNot available with Output code 9Not available with Hazardous area certification code WM, WN, WP
