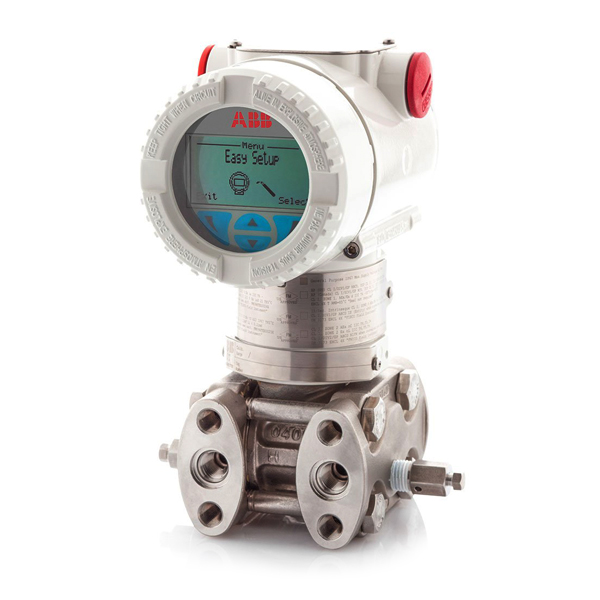

Ordering Information Model 266DSH Differential Pressure Transmitter – BASE ACCURACY 0.06 % SENSOR - Span limits H 1.6 and 160 kPa 16 and 1600 mbar 6.4 and 642 inH2O Application S Differential measurement at standard static pressure Diaphragm material / Fill fluid (wetted parts) S AISI 316 L ss Silicone oil (Note 1) NACE Process flanges/adapters material and connection (wetted parts) A AISI 316 L ss (Horizontal connection)1/4 in. – 18 NPT-f directNACE Bolts/Gasket (wetted parts) 2 For standard static, high static and gauge versionsAISI 316 ssPTFE(Notes 2, 3, 4, 5)NACE (non exposed) Housing material and electrical connection A Aluminium alloy ( barrel version)1/2 in. – 14 NPT(Notes 6) Output/Additional options 1 HART and 4 to 20 mA - Advanced functionality (includes option R1) Drain/vent valve (material and position) (wetted parts) V1 AISI 316 L sson process axis(Note 4, 7)NACE Integral LCD L1 Digital LCD integral display with integrated keypad (Note 8) Mounting bracket (shape and material) B1 For pipe/wall mounting - Carbon steel (Not suitable for AISI housing) (Note 5) Surge S2 Surge/Transient Protector (Note 6) Notes.Not available with sensor code A and BSuitable for oxygen serviceNot available with sensor code ANot available with Process Flanges/Adapters material/connection code P, ZNot available with flange mounted version - Process flanges/adapters material/connection code RNot available with Output code 9Not available with Process flanges/adapters material/connection code D, E, G, H, Q, T, M, S, U, VNot available with Output code 7
