ABBFeaturesBase accuracyFrom 0.06 % of calibrated span (optional 0.04 %)Reliable sensing system coupled with very latest digital technologiesProvides large turn down ratio up to 100:1Comprehensive sensor choiceOptimize in-use total performance and stability10–year stability0.15 % of URLFlexible configuration facilitiesProvided locally via local LCD keypadNew TTG (Through-The-Glass) keypad technologyAllows quick and easy local configuration without opening the cover, even in explosion proof envir
Model

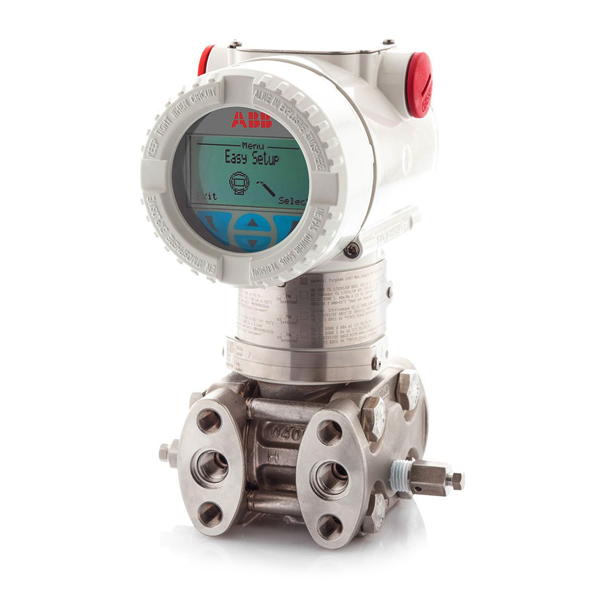

266DSH Differential Pressure Transmitter
Shipping Weight
6 Kg
Артикул
266DSHHSSA1B1L1B2
Описание
Product Number: 266DSHHSSA1B1L1B2Model: 266DSH Differential Pressure TransmitterManufacturer: ABBFeaturesBase accuracyFrom 0.06 % of calibrated span (optional 0.04 %)Reliable sensing system coupled with very latest digital technologiesProvides large turn down ratio up to 100:1Comprehensive sensor choiceOptimize in-use total performance and stability10–year stability0.15 % of URLFlexible configuration facilitiesProvided locally via local LCD keypadNew TTG (Through-The-Glass) keypad technologyAllows quick and easy local configuration without opening the cover, even in explosion proof environments IEC 61508 certification version for SIL2 (1oo1) and SIL3 (1oo2) applications PED complianceCategory III for PS > 21 MPa, 210 barSound Engineering Practice (SEP) for PS = 21 MPa, 210 bar WirelessHART version the battery powered solution compliant to IEC 62591Best-in-class battery lifeup to 10 years @ 32 s update timein-field replaceable
