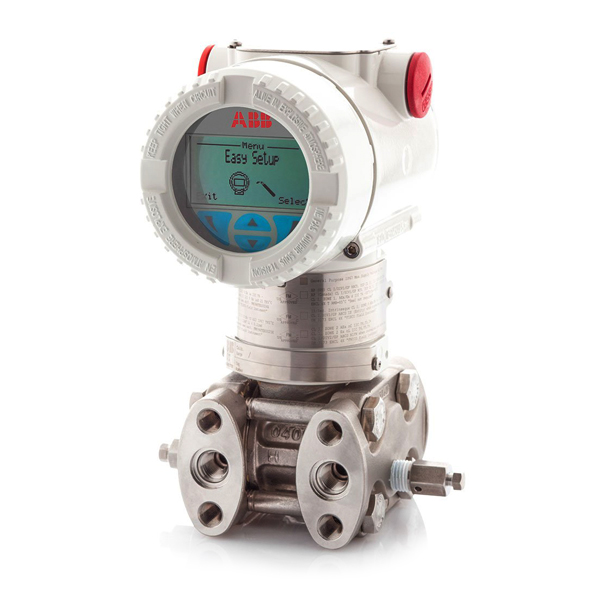

Ordering Information Model 266DSH Differential Pressure Transmitter – BASE ACCURACY 0.06 % SENSOR - Span limits E 0.54 and 16 kPa 5.4 and 160 mbar 2.16 and 64 inH2O (Note 1) Application S Differential measurement at standard static pressure Diaphragm material / Fill fluid (wetted parts) S AISI 316 L ss Silicone oil (Note 2) NACE Process flanges/adapters material and connection (wetted parts) B AISI 316 L ss (Horizontal connection)1/2 in. – 14 NPT-f through adapterNACE Bolts/Gasket (wetted parts) 2 For standard static, high static and gauge versionsAISI 316 ssPTFE(Notes 3, 4, 5, 6)NACE (non exposed) Housing material and electrical connection B Aluminium alloy ( barrel version)M20 x 1.5 (CM 20)(TO BE USED for WirelessHART)(Notes 7) Output/Additional options 1 HART and 4 to 20 mA - Advanced functionality (includes option R1) Drain/vent valve (material and position) (wetted parts) V1 AISI 316 L sson process axis(Note 4, 8)NACE Integral LCD L1 Digital LCD integral display with integrated keypad (Note 9) Mounting bracket (shape and material) B1 For pipe/wall mounting - Carbon steel (Not suitable for AISI housing) (Note 5) Notes.Not available with high static pressure code HNot available with sensor code A and BSuitable for oxygen serviceNot available with sensor code ANot available with Process Flanges/Adapters material/connection code P, ZNot available with flange mounted version - Process flanges/adapters material/connection code RNot available NSF/ANSI 61 approval code YNNot available with Process flanges/adapters material/connection code D, E, G, H, Q, T, M, S, U, VNot available with Output code 7
